Can Arduino be powered by battery?

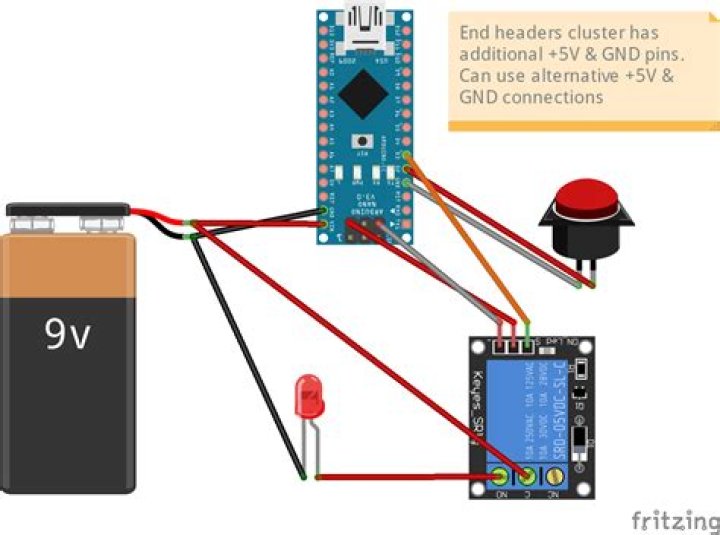

Make your Arduino projects portable by using a battery for power. From the Uno and Mega documentation pages: "The board can operate on an external supply of 6 to 20 volts. You can simply connect the + end of your battery to Arduino Vin and the - end to Arduino ground (fig 1).

People also ask, how long can an Arduino run on battery?

On the Uno in normal mode, we get a current draw of 54.4mA, which means it would run for about 77 hours or three days on the two 18650 batteries.

Also, can Arduino be powered by 9V battery? This one has come up a lot recently on the Arduino subreddit and Electronics stackexchange – can I power my Arduino with a 9V battery? The quick answer is yes, you can. The long answer is yes, but only if your goal is to chose the most expensive and short lived batteries possible.

Herein, can Arduino be powered by 12V?

Yes, it's fine. You can use the Vin pin or the DC Jack to power the Arduino, the recommended input voltage is 7-12V. 5 V is only acceptable when using the using the USB connection.

How do I run an Arduino for years on a battery?

The best is to power the Arduino directly from the battery, so you don't have to use any voltage regulators that will suck some power. I used a set of two AA batteries (1.5V each) with a battery holder thus powering the microcontroller with around 3V, which is fine according to the ATmega328 documentation.

Related Question Answers

How long will a 9 volt battery power an Arduino?

Conclusion. Even with an “expensive” Lithium 9V battery, an Arduino-based project will only last for 1 or 2 days of continuous use.

How much does Arduino battery cost?

When connected to an Arduino, the 9V battery goes through a linear regulation to lower the voltage to an acceptable level. This alone would tax a typical 9V battery. It would do better with 3 AA batteries connected to the 5V input on the Arduino bypassing the regulator.

How long can Arduino Nano run on battery?

45 days

How long can an Arduino stay on?

Failing to use unsigned long can cause problems after about 25 days. Failure to handle ulong overflows correctly can cause problems at about 50 days.) and "memory leaks" are the big things that will cause a program that seems to be working fine to fail at some later time.

Can Arduino Nano run on 3.7 V?

In short: not reliably. The Arduino Nano expects either a 5V regulated supply or a 6-20V unregulated supply (arduino.cc/en/Main/ArduinoBoardNano). On the other hand, if you're set on using a 3.7V LiPo, other Arduino boards (like certain versions of the Pro Mini) run at 3.3V.

Can Arduino Mega handle 12V?

It's ok as long as any components you connect to the Mega which are powered by the Mega's 5V pin or digital pins only draw very small currents. If large currents are drawn, the Mega's regulator could easily overheat. The [u]specs[/u] say 6-20V with 7-12V "recommended".

Can an Arduino power a servo?

You can safely power ONE SMALL servo off the arduino 5v source. Don't try to go anywhere above that, because it will cause excess heat on the power regulator.

What voltage does Arduino run on?

The board can operate on an external supply from 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may become unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 7 to 12 volts.

How many servos can an Arduino power?

12 motors

Can Arduino Nano run 12V?

Yes, you can run the Nano from 12volt. No, you can't draw any current from the Nano (for sensors/LEDs) at that voltage. Better to use a DC/DC (buck) converter to drop that voltage to e.g. 5volt. Pololu has a good range.

Can Arduino run on AA batteries?

It is certainly possible to run your Arduino on batteries, even longer than a year. By using AA batteries, you will get more than four times the life span as with 9V batteries, and eight times in you use two sets in parallel.

How do I power an Arduino without a computer?

You have to provide electric power to the Arduino board. Two possibilities are: Use a 5V USB charger and connect using an USB cable to the Arduino board. Use a 7.5V to 9V DC power adapter and connect with external power jack.

How much power does Arduino Uno draw?

The Arduino Uno board draws about 42 mA assuming no power draw from sensors or other components needed in your system. With a minimum supply voltage of 7 volts, the power consumption of the board is therefore 0.29 Watts.

How do I power my Arduino Nano with a battery?

All you would have to do is cut the small barrel from the end of the 9V battery snap so that the two wires are showing. You can power the Nano with 3 x AA (or AAA) alkaline cells (4.5v) connected to the 5v pin. The 4.5v will also be suitable for powering a servo.

How much current does an Arduino Nano draw?

Warranty

Microcontroller	ATmega328
PWM Output	6
Power Consumption	19 mA
PCB Size	18 x 45 mm
Weight	7 g

How do I reduce the power consumption of my Arduino Nano?

To summarize what we have discussed so far, the power consumption of an Arduino can be reduced by the following methods:

1. Using sleep mode and deep sleep mode.
2. Reducing the clock speed.
3. Replacing or removing unneeded components.
4. Lowering the voltage supply to the board.
5. Making your own Arduino.
