How are curved rafters made?

A curved parallel chord truss is formed with timber chords bent to the required radius and webbed with Posi-Strut metal webs, effectively locking the curve in place. This forms a smooth clean curved roof and ceiling line.

Accordingly, how are curved roofs made?

Curving Methods

Mechanically curved method – This method is used to create a curve that's tighter than what a natural curve would permit. Panels start as straight and are curved by a machine through a set of forming and curving rollers. The rollers compress and stretch the panel into a curved shape.

Likewise, how do you frame a barrel roof? How to Frame a Barrel Roof

1. Frame the dormer up to the top plates. Cut two arch shapes out of 3/4-inch plywood.
2. Install the rafters on the top plates of the dormer. Cut a ridge to the correct length and lay it in the notches at the top of the rafters.
3. Tape a level to the straightedge.
4. Remove the rosin paper.

Simply so, what are rafters made of?

Rafters are usually made of pine or cedar. For longer span rafters, building materials manufacturers have created LVL (Laminated veneer lumber) rafters that can be 2–5 times longer than typical wood rafter.

What is a curved roof called?

Catenary: An arched roof in the form of a catenary curve.

Related Question Answers

Why are tin sheds curved?

History of Curved Roofs

The design came from the attempt to maximize the loft space for hay storage. Pre-World War II barns with round roofs are widely distributed across the U.S and are mostly found in the mid-West. Round roofs without supporting side walls were very popular after 1945.

What are two types of roofs?

Here is a list of 9 different types of roofing to consider for your next re-roofing job:

• Solar tiles.
• Asphalt shingles.
• Metal roofing.
• Stone-coated steel.
• Slate.
• Rubber slate.
• Clay and concrete tiles.
• Green roofs.

What is an arch roof?

An arched roof extends the structural capabilities of the arch by placing a roof over a series of parallel arches. The space that is created once an arched roof is installed is called a vault. The vaulted roof and the barrel vault roof are two common forms of arched roofs.

What is curved truss?

A truss, with either a flat howe or pratt configuration, but in a curved profile. See also: Truss.

What does pitched roof mean?

Roof pitch (or slope) tells you how many inches the roof rises for every 12 inches in depth. An Example of a roof pitch would be a “6/12 pitch” which means that the roof rises 6 ” for every 12″ inward towards the peak (or ridge).

How do you calculate an arch?

You will take four different measurements for this style.

1. To find the width, measure from left to right at the bottom of the arch.
2. For the height, measure from the very center of the width to the tallest point of the arch.
3. Measure each leg's height from the base to the point where it starts to curve into an arch.

Can I bend wood without steam?

Laminating Wood To Bend

A very common practice today is laminating wood much the same as plywood is formed. This provides strength and makes the wood very pliable to work with. By taking solid wood and cutting it into thin strips glued together, will give you any curve you want.

How do you make wood curved?

Method 3 of 3: Bending Wood with the Kerf-cutting Method

1. Prepare your wood. Cut notches, or curves, 2/3 of the thickness of the wood.
2. Compress the ends of the wood to push the gaps created by the notches together. This will be the shape of the wood when it is finished.
3. Fix the bend.

How do you bend wood without breaking it?

Steaming or soaking the wood in boiling water to soften it. 2. Saw-kerfing or grooving the back of the wood so it will bend easily without danger of splitting or cracking. Steaming or soaking lumber can be accomplished in several ways.

How do you copy a curved shape to wood?

Lay the block on the deck with one side against the wood. Lay a pencil on top of the block, with its tip touching the wood. Now hold pencil and block tightly together, and slide them up and over the deck, drawing a line on the wood as they go. This line will exactly mirror the curve of the deck.

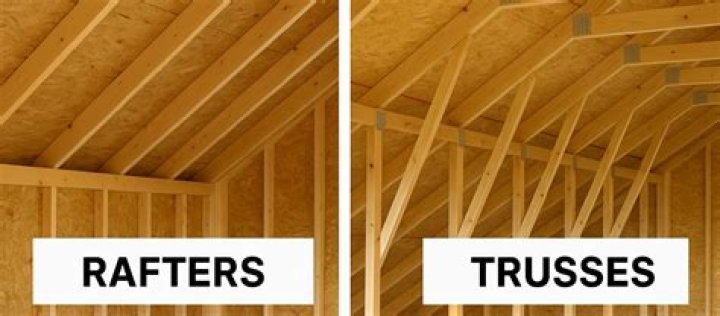

Which is better rafters or trusses?

It is certainly true that trusses are more commonly used than rafters. They're more economical to build and offer the same or greater roof strength. There's a lot to like. However trusses don't give you the opportunity for creativity in home design that rafters allow.

How far can a 2x6 Rafter span?

The table states that 2 X 6 rafters spaced 16 inches on center (o.c) can span a maximum distance of 13 feet 5 inches.

What do roof rafters sit on?

The rafters sit on a wall plate which is an efficient means of spreading the load exerted by the roof structure down through the walls without creating pressure points where each rafter meets the wall.

What is the difference between a rafter and a joist?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture. Wood joists were also used in old-style timber framing.

Are roof trusses cheaper than rafters?

What are Roof Trusses? Trusses are lightweight engineered units consisting of top and bottom "chords" supported by a webbing of lumber in a triangle shape. Because they're pre-made to your building specs offsite, often via automation like computer-driven saws, they are much faster and cheaper to install than rafters.

Are rafters load bearing?

The roof trusses/rafters and floor joists/trusses are running parallel to each other. This means that only the two walls the roof trusses/rafters and floor joists/trusses are bearing on are load bearing.

What kind of wood do you use for roof rafters?

Douglas fir wood

Can I joists be used as rafters?

Wood I-joists are used as a framing material primarily in floors, but may also be used as roof rafters where long length and high load capacity are required. They are used as an alternative to sawn lumber.

How far can trusses span without support?

Trusses can span up to approximately 90', although very long truss spans are more challenging to deliver, erect, brace and install properly.
