How is throughput calculated AWS?

Amazon EBS calculates throughput using the equation: Throughput = Number of IOPS * size per I/O operation. The size per I/O operation varies by volume type. Note: Amazon EBS guarantees maximum throughput of 1,000 MiB/s only on Nitro-based instances. Other instance families guarantee up to 500 MiB/s.

Similarly, what is throughput in AWS?

Throughput is the measure of the amount of data transferred from/to a storage device in a second.

Additionally, what is AWS Provisioned IOPS? Provisioned IOPS are a new EBS volume type designed to deliver predictable, high performance for I/O intensive workloads, such as database applications, that rely on consistent and fast response times.

Beside above, how do you calculate Provisioned IOPS?

IOPS usage can be simply calculated by knowing the total read and write throughputs (ops) of your disk divided by the time in seconds within that period.

How do I increase my AWS IOP?

To improve the performance for your provisioned IOPS (SSD) (io1) volumes, check the following:

1. Initialize your restored EBS volumes.
2. Confirm the workload demand, average queue length, and IOPS rate.
3. Make sure the size of your I/O operations aren't limiting provisioned IOPS.

Related Question Answers

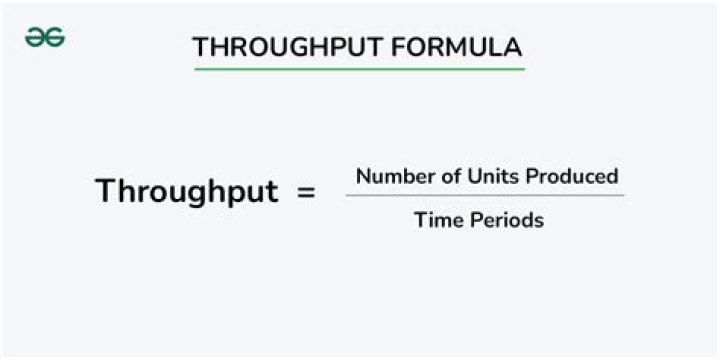

How is throughput calculated?

The throughput efficiency formula can be calculated more than one way, but the general formula is I = R * T. In other words, Inventory = Rate multiplied by Time, where “rate” is the throughput. But if you solve for R, you would get R = I / T, or Rate = Inventory divided by Time.

What is AWS DevOps?

DevOps is the combination of cultural philosophies, practices, and tools that increases an organization's ability to deliver applications and services at high velocity: evolving and improving products at a faster pace than organizations using traditional software development and infrastructure management processes.

Is EBS a SSD?

Amazon EBS allows you to create storage volumes and attach them to Amazon EC2 instances. SSD-backed volumes include the highest performance Provisioned IOPS SSD (io1) for latency-sensitive transactional workloads and General Purpose SSD (gp2) that balance price and performance for a wide variety of transactional data.

What is the difference between s3 and EBS?

Amazon S3 is cheapest for data storage alone. Amazon S3 can be accessed from anywhere. AWS EBS is only available in a particular region, while you can share files between regions on multiple EFS instances. EBS and EFS are both faster than Amazon S3, with high IOPS and lower latency.

What is throughput of a system?

Throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second (p/s or pps) or data packets per time slot. The system throughput or aggregate throughput is the sum of the data rates that are delivered to all terminals in a network.

What is the difference between IOPS and throughput?

IOPS measures the number of read and write operations per second, while throughput measures the number of bits read or written per second. Although they measure different things, they generally follow each other as IO operations have about the same size.

What is SSD in AWS?

Introducing the Amazon EBS General Purpose (SSD) volume type. Backed by Solid-State Drives (SSDs), General Purpose (SSD) volumes provide the ability to burst to 3,000 IOPS per volume, independent of volume size, to meet the performance needs of most applications and also deliver a consistent baseline of 3 IOPS/GB.

What are the types of EBS?

Amazon EBS provides four current generation volume types: Provisioned IOPS SSD (io1), General Purpose SSD (gp2), Throughput Optimized HDD (st1) and Cold HDD (sc1).

What does IOPS stand for?

IOPS (Input/Output Operations Per Second, pronounced i-ops) is a common performance measurement used to benchmark computer storage devices like hard disk drives (HDD), solid state drives (SSD), and storage area networks (SAN).

How does IOPS affect performance?

Along with transfer rate, which measures how fast data can be transferred from contiguous storage locations, IOPS can be used to measure storage performance. While transfer rate is measured in bytes, IOPS is measured as an integer. As a measurement, IOPS can be compared to revolutions per minute (rpm) of a car engine.

What is SSH AWS?

About Amazon EC2 Instance Connect The most common tool to connect to Linux servers is Secure Shell (SSH). It was created in 1995 and is now installed by default on almost every Linux distribution. When connecting to hosts via SSH, SSH key pairs are often used to individually authorize users.

What is the maximum number of IOPS you can get with an SSD gp2 EBS volume?

General purpose SSD (gp2) volumes GP2 is designed to offer single-digit millisecond latencies, deliver a consistent baseline performance of 3 IOPS/GB (minimum 100 IOPS) to a maximum of 16,000 IOPS, and provide up to 250 MB/s of throughput per volume. GP2 volumes smaller than 1 TB can also burst up to 3,000 IOPS.

What is root volume in AWS?

When you launch an instance, the root device volume contains the image used to boot the instance. When we introduced Amazon EC2, all AMIs were backed by Amazon EC2 instance store, which means the root device for an instance launched from the AMI is an instance store volume created from a template stored in Amazon S3.

How much Iops do I need?

50-100 IOPS per VM can be a good target for VMs which will be usable, not lagging. This will keep your users happy enough, instead of pulling their hair. So a Google VM with 40 GB disk and 30 IOPS/GB will be able to peak at (maybe not sustain, though) 1,200 IOPS.

What is burst in AWS?

What is EBS Burst? For this reason, AWS introduced the concept of EBS Burst. GP2 volumes can support a sustained load of up to 3,000 operations per second for up to 30 minutes at a time. The availability of burst capacity is determined by credits which have been accumulated in the volume's burst bucket.

Where EBS snapshots are stored?

EBS snapshots are stored in S3 but not in a user-visible bucket. To view your snapshots use the AWS api or they are in the EC2/Snapshots tab of the AWS Console. Something like: amazon.com/ec2/home?region=us-east-1#s=Snapshots, depending on your region.

What is the maximum size of an EBS storage device?

EBS currently supports a maximum volume size of 16 TiB. This means that you can create an EBS volume as large as 16 TiB, but whether the OS recognizes all of that capacity depends on its own design characteristics and on how the volume is partitioned.

What is IOPS per GB?

It means that the IOPS depends on the volume capacity, in other words, how small/large the volume is provisioned affects its performance. If have only 1 GB, you can only do 3 Input/Output per second. If you have 100 GB, you can expect 300 IOPS. If you have 3334 GB, you can expect up to 10000 IOPS.

How can I increase my IOPS?

Upgrade to larger cache. Having a large cache means the disk is going to have improved read and write operations and lesser performance I/O bottlenecks. Placing solid state drives in front of disks can act like a large cache and significantly increase IOPS capacity.

What are high IOPS?

Stands for "Input/Output Operations Per Second." IOPS is a metric used to measure to performance of a storage device or storage network. For example, a high sequential write IOPS value would be helpful when copying a large number of files from another drive. SSDs have significantly higher IOPS valued than HDDs.

How does AWS EBS work?

Designed for mission-critical systems, EBS volumes are replicated within an Availability Zone (AZ) and can easily scale to petabytes of data. Also, you can use EBS Snapshots with automated lifecycle policies to back up your volumes in Amazon S3, while ensuring geographic protection of your data and business continuity.

Which tool will allow you to model the cost of a system on AWS?

To estimate a bill, use the AWS Pricing Calculator. Enter your planned resources by service, and the AWS Pricing Calculator provides an estimated cost per month. To forecast your costs, use the AWS Cost Explorer. Use cost allocation tags to divide your resources into groups, and then estimate the costs for each group.

How can I increase my EBS size?

In order to extend the volume size, follow these simple steps:

1. Login to your AWS console.
2. Choose “EC2” from the services list.
3. Click on “Volumes” under ELASTIC BLOCK STORE menu (on the left)
4. Choose the volume that you want to resize, right click on “Modify Volume”
5. You'll see an option window like this one:

What is ELB latency?

ELB Latency: "Measures the time elapsed in seconds after the request leaves the load balancer until the response is received."

How do I reduce AWS volume?

The answer is NO. It is impossible to decrease EBS volume size.

Here is the trick :

1. Snapshot the volume.
2. Create a new smaller EBS volume.
3. Attach the new volume.
4. Format the new volume.
5. Mount the new volume.
6. Copy data from old volume to the new volume.
7. Prepare the new volume.
8. Detach and unmount old volume.

What is the difference between EBS and Instance Store?

TL;DR. EBS volume is network attached drive which results in slow performance but data is persistent meaning even if you reboot the instance data will be there. Instance store is physically attached device which gives better performance but data will be lost once instance is rebooted.

How will you secure data at rest in EBS?

You can now encrypt datastored on an EBS volume at rest and in motion by setting a single option. When you create an encrypted EBS volume and attach it to a supported instance type, dataon the volume, disk I/O, and snapshots created from the volume are all encrypted.

Can we reduce EBS volume?

It is impossible to decrease EBS volume size. Create a new smaller EBS volume. Attach the new volume. Format the new volume.

How do I change my AWS IOP?

You can't change the EBS size and IOPS once it's attached to EC2 and it's a running instance. You'll need to stop it to make any changes. First, shutdown your instance. In the snapshots menu option - select the volume you want to change and make a snapshot.
