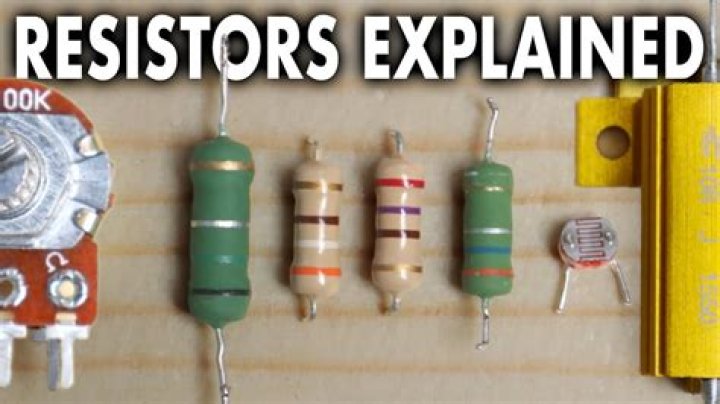

What are resistors made out of?
Resistor Composition Most common, modern resistors are made out of either a carbon, metal, or metal-oxide film. In these resistors, a thin film of conductive (though still resistive) material is wrapped in a helix around and covered by an insulating material.
Similarly one may ask, what material are resistors made of?
Wirewound resistors are commonly made by winding a metal wire, usually nichrome, around a ceramic, plastic, or fiberglass core. The ends of the wire are soldered or welded to two caps or rings, attached to the ends of the core.
Additionally, what are the 4 types of resistors? Types of Fixed resistors.
- Carbon Composition Resistors.
- Wire Wound Resistors.
- Thin Film Resistors.
- Thick Film Resistors.
Similarly one may ask, how do resistors work?
A conductor has low resistance, while an insulator has much higher resistance. Devices called resistors let us introduce precisely controlled amounts of resistance into electrical circuits. A resistor works by converting electrical energy into heat, which is dissipated into the air.
What are examples of resistors?
Resistors are used for many purposes. A few examples include delimit electric current, voltage division, heat generation, matching and loading circuits, control gain, and fix time constants.
Variable resistors, such as the:
- Potentiometer.
- Rheostat.
- Trimpot.
Related Question Answers
Do resistors change voltage?
Resistors affect both current and voltage. This gives the supply voltage of 1500 volts. The voltage across each resistance will vary directly in proportion to the current that is flowing through it. So, in the first resistor of 10 ohms, the voltage across it is 10 times 10. or 100 Volts.What do resistors do to voltage?
Resistors let you choose how much current flows for a given voltage since you can think of wires as having no resistance (simplified). In short: Resistors limit the flow of electrons, reducing current. Voltage comes about by the potential energy difference across the resistor.How many resistors are there?
Generally, there are two types of resistors which have linear properties. As its name suggests, a fixed resistor is a resistor which has a specific value and we can't change their value.Why do we use resistors?
Circuits need resistors for, for all manner of reasons. Resistors are used to provide biasing voltages that control the gain of amplifiers, they are used to limit currents to safe levels and prevent overheating, they provide a way to sense current and voltage for circuit control and more.Why are resistors encased in ceramic?
Because of its insulation and thermal properties, ceramic is used to externally insulate and provide even greater thermal endurance to some types of resistors. The most common of these types are resistors made of resistive wire spun around a ceramic core and then encased in a block or cylinder of ceramic material.What are the two main types of resistors?
Resistors can be seen in almost all electronic circuits. There are many types of resistors and they can be divided into two groups namely fixed resistor and adjustable resistor (variable resistor). The main function of the resistor is to resist the flow of electric current and regulate the flow of electrons.Is a wire a resistor?
A "wire" where? A wire in real life, unless it is a superconductor, is a resistor because it has a non-zero value of resistance. However, it has a considerably less resistance than most of the other components of the circuit, so one often ignores that in ordinary cases, but not in all.How many load resistors do I need?
Expert Reply: Per Putco, you would need 1 load resistor inline with the wiring harness feeding LED bulb for a turn signal. I believe your Sierra has two bulbs per side, one for the running lamp, one for the brake/turn signal. You only need to install Load Resistors on the circuits feeding the turn signals.Do resistors reduce voltage?
Voltage varies directly with current. If I add in a resistor to a circuit, the voltage decreases. If you have a resistor in a circuit, with a current flowing through it, there will be a voltage dropped across the resistor (as given by Ohm's law).Why do resistors heat up?
Overheating of Resistor When a resistor is placed under a voltage that approaches the upper limits of its power rating, the resistor generates more heat than normal. This is due to the voltage attempting to force more current (electrons) through the resistor than it is designed to pass.Why do resistors have a tolerance?
Resistors don't inherently have tolerance. They are made to certain tolerances. This is the amount that the resistance can varied from the specified value. So if you have a 1KΩ resistor with 10% tolerance, the actual value of the resistor can be 900Ω to 1100Ω .How much voltage can a resistor handle?
Maximum working voltage is often expressed as “Vrms.” power through the part would be 562.5 watts. This far exceeds the power rating of the part. Conversely, for high resistance values, the amount of electrical energy that the 0603 resistor can withstand is determined by the working voltage rating of 75 volts.How do resistors reduce voltage?
To reduce voltage in half, we simply form a voltage divider circuit between 2 resistors of equal value (for example, 2 10KΩ) resistors. To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors.What appliances use resistors?
Appliances such as electric heaters, electric ovens, and toasters all use resistors to turn current into heat, then using the heat lost from this resistor to warm the surrounding area.Do resistors absorb current?
A resistor does not regulate the charge flow it however impedes its flow, the result of which is power loss, heat dissipation and voltage drop around the resistor.How do you know if a resistor is bad?
Set a digital multimeter for "ohms." Set an ohms range that is equal to or higher than the value of the resistor to be tested. Touch the red lead from the meter to one side, and the black lead to the other. Resistors do not hold a polarity, so it doesn't matter which side gets the red or black lead.What makes a good resistor?
Today, metal and metal oxide resistors are the most widely used, and are better for providing a stable tolerance and resistance, while also being less influenced by changes in temperature.What is MFR resistor?
Metal film resistors have a thin metal layer as resistive element on a non-conducting body. They are amongst the most common types of axial resistors. Other film type resistors are carbon film and thick and thin film resistors. In most literature referrals to metal film, usually it is a cylindrical axial resistor.How do you test a resistor?
Pick out a random resistor and set the multimeter to the 20kΩ setting. Then hold the probes against the resistor legs with the same amount of pressure you when pressing a key on a keyboard. The meter will read one of three things, 0.00, 1, or the actual resistor value.What is SMD resistor?
An SMD resistor is a type of resistor that has been designed to be surface mounted. The SMD part of “SMD Resistor” stands for Surface Mounted Device. An SMD is an electronic component that can be mounted directly to a PCB circuit board by using “Surface Mount Technology” (SMT).Is a battery a resistor?
A battery is a real-life voltage source. A battery can be thought of as a perfect voltage source with a small resistor (called internal resistance) in series. The terminal voltage equals the emf minus the voltage drop across the internal resistance (current of the external circuit times the internal resistance.)What is a resistor symbol?
A basic resistor is usually a length of nichrome wire wound around a ceramic tube. From the side view, it appears as a zigzag line, which is why the resistor is a zigzag symbol. This symbol dates back to the turn of the century before the invention of carbon film, and metal film resistors.Where do we use resistors in everyday life?
Resistors are used for many purposes. A few examples include delimit electric current, voltage division, heat generation, matching and loading circuits, control gain, and fix time constants. They are commercially available with resistance values over a range of more than nine orders of magnitude.What can I use in place of a resistor?
All electrically conductive materials are somewhat resistive, too. Because of this, even a good electrical conductor, such as metal wire, can be used as a resistor.What are resistors and its types?
The types of resistors include:- Carbon Composition Resistor.
- Thermistor.
- Wire Wound Resistor.
- Metal Film Resistor.
- Carbon Film Resistor.
- Variable Resistor.
- Varistor?
- Light Dependent Resistor.
