What are the advantages of Brinell hardness test?

Advantages of Brinell Hardness Test:

• The flat irregular metal surface does not affect the Brinell hardness test.
• This hardness test is less sensitive.
• It is used to measure the hardness of components made from powder metallurgy and cast.
• It can bear the heavy load for testing.

Keeping this in consideration, what are the advantages and disadvantages of Brinell hardness test?

What is Advantages and disadvantages of brinell hardness test

• 1) easy operated. Brinell hardness test is easy to operate.
• 2) fast test.
• 3) good for industry.
• 4) Good for soft materials.
• 5) Used for non homogeneous materials.
• 6) irregular material hardness test.
• 7) check hardness of power metallurgy.
• 1) Less sensitive.

Secondly, what are the advantages of using the hardness test? The application of hardness testing enables you to evaluate a material's properties, such as strength, ductility and wear resistance, and so helps you determine whether a material or material treatment is suitable for the purpose you require.

Also to know, what is the importance of Brinell hardness test?

As the Brinell test uses relatively high loads, and therefore relatively large indent, it is frequently used to determine the hardness in circumstances where the overall material properties are being ascertained and local variations in hardness or surface conditions make other methods un- suitable, such as forgings or

What are the advantages and disadvantages of Rockwell hardness test?

The Rockwell method has the following disadvantages: It is not always the most accurate hardness testing method, as even a slight error in measuring the depth difference can result in a significant error in the calculated hardness value.

Related Question Answers

What are the disadvantages of the Brinell hardness method?

Disadvantages of Brinell Hardness Test:

• The main disadvantage of this test is that it is not suitable for small size objects due to large indentor impression.
• Slightly inaccurate hardness measurement while testing hard objects as ball indentor deforms.
• Not suitable for thin objects due to deep penetration.

What are the disadvantage of hard water?

• Hard water is unfit for washing as it is difficult to form lather with soap.
• Scum may form in a reaction with soap, wasting the soap.
• Furring of tea kettles will take place due to the formation of carbonates of calcium and magnesium.
• Hard blocks hot water pipes.

What is the difference between Brinell and Rockwell hardness?

The Rockwell Test uses specific steps to measure hardness. Unlike the Brinell Test, it uses a smaller indenter such as a diamond. This indenter is used to apply a minor load ( Increased load/force is applied later) so as to avoid breaking the surface of the material.

What is the Rockwell hardness test used for?

The Rockwell Hardness test is used to determine the hardness of a material by measuring the depth of penetration of an indenter on the material being tested.

What are the advantages and disadvantages of Vickers hardness test?

The Vickers method has the following advantages: The Vickers method can be used with any and all materials and test specimens, from soft to hard, as the procedure covers the entire hardness range.

What is the disadvantage of Knoop hardness test?

The Knoop method has the following disadvantages:

The process is rather slow (compared with the Rockwell method). The test cycle takes somewhere between 30 and 60 seconds, not including the time taken to prepare the specimen.

What are the different types of hardness tests?

Types of Hardness

• Indentation Hardness. This hardness type refers to the resistance to permanent deformation when subjecting a material to a continuous load.
• Scratch Hardness.
• Rebound or Dynamic Hardness.
• Brinell Hardness Test.
• Rockwell Hardness Test.
• Vickers Hardness Test.
• Mohs Hardness Test.
• Scleroscope Test.

Why do we use Vickers hardness test?

In most cases, the Vickers hardness test is used to determine hardness in materials in the micro hardness test load range. However, the Knoop hardness test is often used when hardness testing thin layers, such as coatings, or to overcome the problem of cracking in brittle materials.

What is the importance of hardness?

Hardness is the property of a material that enables it to resist plastic deformation, penetration, indentation, and scratching. Therefore, hardness is important from an engineering standpoint because resistance to wear by either friction or erosion by steam, oil, and water generally increases with hardness.

What is the role of hardness in material?

The hardness of a material is the property that enables it to resist deformation, bending, scratching, abrasion, or cutting. common hardness tests that measure the relationship between hardness and the size of the impression left by the test are the Rockwell, Brinell, and Vickers hardness tests.

How is BHN calculated?

BHN = 2P/πD(D - √(D² - d²)). Load P in kgf, steel ball diameter D in mm & changed diameter d in mm are the key terms of this calculation.

What are the importance of the tablet hardness test?

These tablet hardness tests provide a meaningful picture as to the amount of force required to fracture the solid-dose tablet. This knowledge will be useful in gauging the tablet's resistance to damage that might occur during production handling, packaging, and storage.

Which material has the highest hardness value?

Diamond

How do you use Brinell hardness?

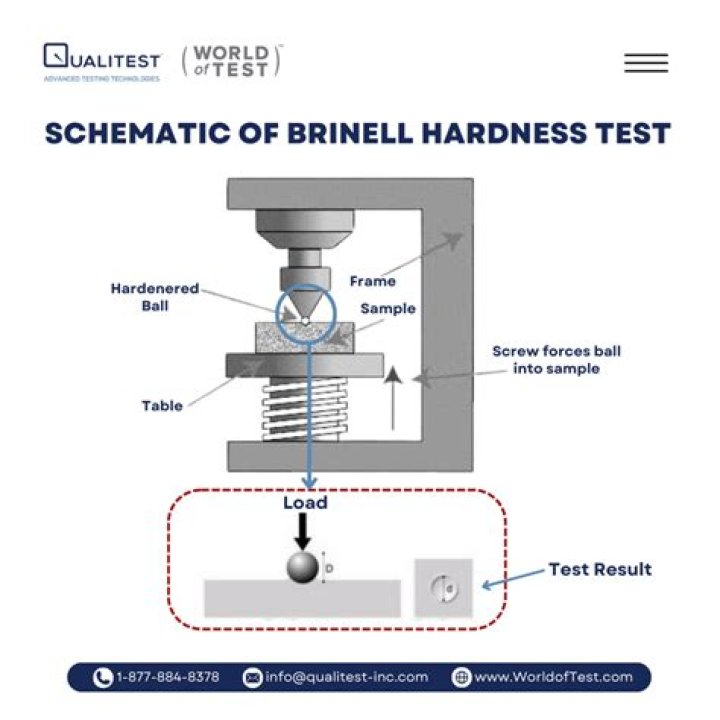

Brinell hardness is determined by forcing a hardened steel or carbide ball of known diameter under a known load into a surface and measuring the diameter of the indentation with a microscope. The Brinell hardness number is obtained by dividing the load, in kilograms, by…

What is the measure of hardness?

Hardness is a measure of the resistance to localized plastic deformation induced by either mechanical indentation or abrasion.

Which hardness test is more accurate?

A Brinell hardness tester can test all types of metals. The results of the Brinell method are more accurate and reliable than those obtained by the Rockwell method because the use of a spherical indenter distributes pressure evenly.

What are the advantage of hardness of water?

Advantages of Hard Water

Tastes Better: The taste of the hard water is better than soft water. Soft water is tasteless. But if you are drinking hard water, you will notice that it has a taste. Strengthens Bone & Teeth: Hard water acts as a dietary supplement of both calcium and magnesium.

What is the disadvantage of shore test?

What is a disadvantage of shore test? Explanation: If a specimen is less than 1 kg, it should be clamped. Shore test gives very shallow indentations. It is a fast test.

How is the Rockwell hardness test performed?

The Rockwell hardness test measures hardness in the simplest way possible: by pressing an indenter into the surface of the material with a specific load and then measuring how far the indentor was able to penetrate. Most of the time, the indenter is made of either a steel ball or a diamond.

What indenter is used for Brinell test?

In the Brinell hardness test, an optical method, the size of indentation left by the indenter is measured. In contrast to the likewise optical Vickers method,which involves a pyramid-shaped indenter being pressed into a specimen, the Brinell method uses a spherical indenter.

What is the advantage of the Rockwell hardness method?

The advantage of Rockwell hardness testing is the relatively short testing time and good automation capability, as the measured values are determined directly from the indentation depth without optical measurement under a microscope. This process is therefore particularly suitable for automated production.

Why Rockwell hardness testing is the most popular?

As said before, the Rockwell hardness test is the most popular one for determining the hardness. The quality control is a very important part of the industry. So, this test helps to know how strong the material is and whether it can face extreme heat and pressure for several applications.

Why Brinell and Vickers hardness test results show similarities?

Why Brinell and Vickers hardness test results show similarities? Explanation: Brinell test indenter is made of hardened steel. Vickers test indenter is made of diamond. These give geometrically similar indentations so the similar results.

Which scale is used to test softer materials?

B scale

How thick must the specimen be to get an accurate Rockwell hardness reading?

Material Thickness

As a general rule, the material to be tested should be at least 10 times the depth of the indentation made while using a diamond indenter and at least 15 times the depth of indentation when using a steel ball indenter.
