What is base circle in gear?

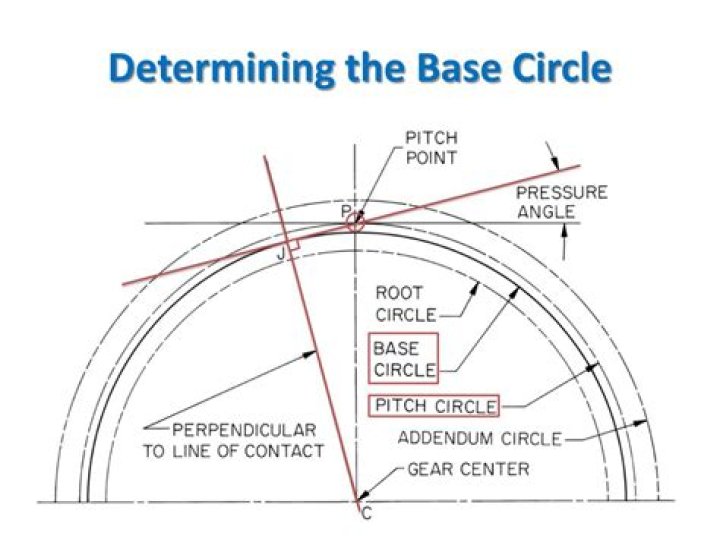

Base circle of a gear is the base circle for the involute curve. An involute curve is the trace of a point at the end of a taut string that unwinds from a cylinder, and this cylinder is called the base circle. The base circle diameter is given by the equation db = d cos α.
Also question is, what is base circle?
Definition of base circle. : the circle of an involute gear wheel from which the involute forming the outline of the tooth face is generated.
Additionally, how do you identify a gear module? "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
Accordingly, what is pitch circle in gear?
Pitch circle is the imaginary circle on the gear about which it may be supposed to roll without slipping with pitch circle of another gear. The point of contact of two pitch circle becomes the pitch point. Look out the two dotted circles which are in pure rolling about a fixed point ( which is called the pitch point).
How do you find the base circle diameter of a gear?
Calculate the Pitch Diameter for each of the two gears listed above. Step 2.) Add the two diameters and divide by 2. Divide by 2 Sum of both gear diameters = 4.0”/2 = center to center distance = 2” (This is necessary since the gear centers are separated by a distance equal to the sum of their respective radii.)
Related Question Answers
What is base circle in Cam?
Base Circle: The smallest circle drawn, tangential to the cam profile, with its center on the axis of the camshaft. The size of the base circle determines the size of the cam. Prime Circle: The smallest circle drawn, tangential to the pitch curve, with its center on the axis of the camshaft.How is addendum calculated?
Addendum (ha) is the distance between the reference line and the tooth tip. Dedendum (hf) is the distance between the reference line and the tooth root. Calculation Examples : The following are calculations of Tooth depth (h) / Addendum (ha) / Dedendum (hf) for a gear with module 2.What is DP in gear?
DP: Stands for “Diametral Pitch”. It's a ratio equal to the number of gear teeth per inch of printing diameter. Pi: The ratio between the diameter of a circle and its circumference.What is flank in gear?
Flank:The face of a gear tooth which comes in contact with the teeth of another gear. So,a flank is an important part of a gear.What is a gear tooth called?
A gear or cog is a rotating machine part having cut teeth or, in the case of a cogwheel, inserted teeth (called cogs), which mesh with another toothed part to transmit torque. Two or more meshing gears, working in a sequence, are called a gear train or a transmission.What is an involute curve?
In mathematics, an involute (also known as an evolvent) is a particular type of curve that is dependent on another shape or curve. An involute of a curve is the locus of a point on a piece of taut string as the string is either unwrapped from or wrapped around the curve.What is addendum circle?
Definition of addendum circle. : a circle touching the outermost points of the teeth of a circular gear wheel — see pitch line.How do you calculate addendum and Dedendum?
Dedendum: The radial distance of the tooth measuring from the pitch circle to the bottom of the tooth space. Diametral pitch: Ratio expressing the size of a gear tooth. It is equal to the number of teeth divided by the pitch diameter.| Pitch Diameter | d |
|---|---|
| Module | m = d/N |
| Addendum | a = 1/Pd |
| Dedendum | b = 1.25/Pd |
What is diametral pitch?
The diametral pitch of a gear is the number of teeth per inch of pitch diameter. Pitch diameter is the pitch circle below. It specifies the tooth spacing along the pitch circle of each gear, which must be the same for the gears to work together. It's used to know that two gears will mesh.How do you determine the pitch of a gear?
To estimate the pitch of an inch gear, first count the number of teeth and add 2 to the total. Next, divide the result by the OD of the gear in inches. Round to the nearest whole number. For example, a gear with 32 teeth and an OD of 2.13" has a pitch of 16.What is lead & profile in gear?
Lead is the axial advance of a helix gear tooth during one complete turn (360°), that is, the Lead is the axial travel (length along the axle) for one single complete helical revolution about the pitch diameter of the gear. For the same lead, the lead angle is larger for smaller gear diameters.How do you know if gears will mesh?
Module or Diamatral Pitch should be same for each Gear. ) Central axis of both the aligning gears should be parallel or normal based on the type of gears used say Bevel or Worm and Worm gears etc… ) Pitch circle of both gears should match tangentially.What is the purpose of gearbox?
Most modern gearboxes are used to increase torque while reducing the speed of a prime mover output shaft (e.g. a motor crankshaft). This means that the output shaft of a gearbox rotates at a slower rate than the input shaft, and this reduction in speed produces a mechanical advantage, increasing torque.What are the 4 types of gears?
Types of Gears- Spur Gear. Gears having cylindrical pitch surfaces are called cylindrical gears.
- Helical Gear. Helical gears are used with parallel shafts similar to spur gears and are cylindrical gears with winding tooth lines.
- Gear Rack.
- Bevel Gear.
- Spiral Bevel Gear.
- Screw Gear.
- Miter Gear.
- Worm Gear.
How do I know what helical gear module I have?
Comparative Size of Gear-Teeth- Module (m) m = 1 (p = 3.1416) m = 2 (p = 6.2832)
- CP (Circular Pitch) Circular Pitch (CP) denotes the reference pitch (p). For instance, you can produce gears at an exact integral value, such as CP5/CP10/CP15/CP20.
- DP (Diametral Pitch) DP stands for Diametral Pitch.
