The Knoop hardness test uses a rhombohedral-shaped diamond indenter. The long diagonal is seven times (7.114 actually) as long as the short diagonal. With the indenter shape, elastic recovery can be held to a minimum. However, only the long diagonal is measured. This, of course, saves a little time. Accordingly, what is the difference between a Vickers and Knoop indenter?
Due the long and narrow (elongated) test indent, the Knoop method is best suited for use with small, longish test specimens, whilst the Vickers method is better for small, rounded specimens (square indentation).
One may also ask, what is Knoop value? Knoop hardness, a measure of the hardness of a material, calculated by measuring the indentation produced by a diamond tip that is pressed onto the surface of a sample. The test was devised in 1939 by F. Knoop and colleagues at the National Bureau of Standards in the United States.
One may also ask, what is Knoop hardness test used for?
The Knoop hardness test is an alternative to the Vickers hardness test in the micro hardness testing range, and it can be performed on the same universal or micro hardness testing machine. It is mainly used to overcome cracking in brittle materials, as well as to facilitate the hardness testing of thin layers.
What is the Knoop hardness of diamond?
8000 kgf mm−2
Related Question Answers
What is the meaning of Knoop?
Knoop is a Dutch and Low German surname. Meaning "knot" and "button", it may have a metonymic origin referring to button maker. What is ASTM E384?
ASTM E 384 Standard Test Method for Microindentation Hardness of Materials. This specification covers both the Knoop and Vickers Hardness Tests when conducted using test forces in the 1 to 1000 gf. range. While this test method is primarily designed for metals, it may be used on other materials as well. What are the advantages and disadvantages of Vickers hardness test?
The Vickers method has the following advantages: The Vickers method can be used with any and all materials and test specimens, from soft to hard, as the procedure covers the entire hardness range. How do you calculate Vickers hardness?
The Vickers number (HV) is calculated using the following formula: HV = 1.854(F/D2), with F being the applied load (measured in kilograms-force) and D2 the area of the indentation (measured in square millimetres). What are the different types of hardness tests?
TEST TYPES - Hardness Testing Basics.
- Rockwell Hardness Testing.
- Brinell Hardness Testing.
- Vickers Hardness Testing.
- Knoop Hardness Testing.
- Case Depth Hardness Testing.
What is the disadvantage of the Knoop hardness test?
The Knoop method has the following disadvantages:The process is rather slow (compared with the Rockwell method). The test cycle takes somewhere between 30 and 60 seconds, not including the time taken to prepare the specimen.

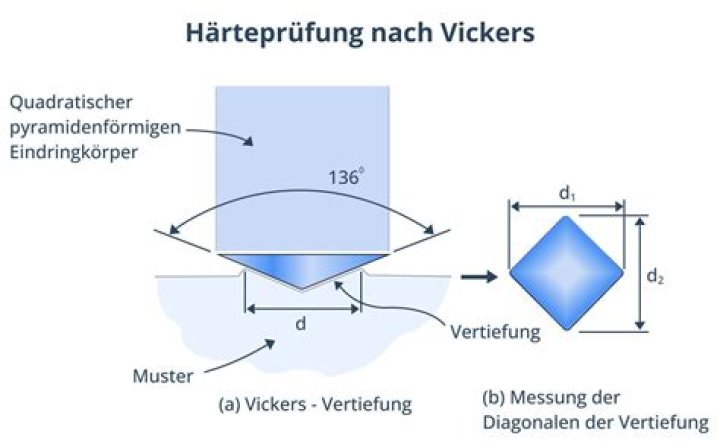

What is the difference between Vickers and Knoop hardness test?
The indenter used on a Knoop test is pyramid-shaped but more elongated than the indenter used on a Vickers test. After this dwell period, the force is removed. Unlike the Vickers test where the indentation length on the vertical and horizontal axes are measured and averaged, the Knoop method only uses the long axis. What is the most commonly used hardness test method for metals?
Rockwell hardness test
What is a microhardness test and what is its name?
Microhardness Testing is a method of determining a material's hardness or resistance to penetration when test samples are very small or thin, or when small regions in a composite sample or plating are to be measured. What is the shape of Knoop indenter?
In a Knoop test, a predetermined test force is applied with a pyramid-shaped diamond indenter for a specified dwell time period. The indenter used on a Knoop test is pyramid-shaped but more elongated than the indenter used on a Vickers test. Which test is more preferred for testing hardness of electroplated surface?
5. Which test is more preferred for testing hardness of electroplated surface? Explanation: Hardness of electroplated surface is tested by microhardness test. How do you measure Brinell hardness?
Brinell hardness is determined by forcing a hardened steel or carbide ball of known diameter under a known load into a surface and measuring the diameter of the indentation with a microscope. What is a limitation of the Rockwell test?
The drawback of the Rockwell test is that the indenter travel is limited to 100 Rockwell points or 0.2 millimeter. This limitation requires different combinations of test force and indenter shapes to accommodate the hardness of all the possible materials to be tested. What is hardness testing?
Hardness testing enables you to evaluate the strength, ductility and wear resistance of a material, which can determine whether a material is suitable for the purpose you require. The hardness of a metallic material can be defined as its resistance to plastic deformation caused by a force applied through an indenter. Which of the following is a dynamic hardness test?
1. Which of the following is a dynamic hardness test? Explanation: Poldi is a dynamic hardness test. Hammer blow is used. How is micro hardness measured?
Microhardness is the hardness of a material as determined by forcing an indenter such as a Vickers or Knoop indenter into the surface of the material under 15 to 1000 gf load; usually, the indentations are so small that they must be measured with a microscope. How is rubber durometer measured?
Hardness value is determined by the penetration of the Durometer indenter foot into the sample being tested. The resilience of rubbers and plastics means that the indentation reading may change over time, so the indentation time is sometimes reported alongside the hardness number. How is Rockwell hardness measured?
The Rockwell hardness test is based on the measurement of the depth to which an indenter is forced by a heavy (major) load beyond the depth resulting from a previously applied preliminary (minor) load. What are Vickers?
Vickers is a famous name in British engineering that existed through many companies starting in 1826. Why did we use diamond as an indenter?
Diamond indenters are widely used for indentation hardness tests. Various types of indenters such as Vickers, Knoop, and Berkovich are known. Therefore the tip of the natural diamond indenter is in a state which may facilitate fracturing or chipping.
