What is sample and hold amplifier?

The sample-and-hold amplifier, or SHA, is a critical part of most data acquisition systems. It captures an analog signal and holds it during some operation (most commonly analog-digital conversion). When the sample-and-hold is in the sample (or track) mode, the output follows the input with only a small voltage offset.

In this regard, what is sample and hold circuit?

The main function of a sample-and-hold (S/H) circuit is to take samples of its input signal and hold these samples in its output for some period of time. Typically, the samples are taken at uniform time intervals; thus, the sampling rate (or clock rate) of the circuit can be determined.

Subsequently, question is, what is the purpose of a sample and hold circuit in an ADC? Sample and Hold is a circuit that is used to take a changing analog signal and literally hold it so that a following circuit or system such as an ADC, (Analog to Digital Converter) has the necessary time it needs to process it.

Additionally, why sample and hold circuit is used?

In electronics, a sample and hold (also known as sample and follow) circuit is an analog device that samples (captures, takes) the voltage of a continuously varying analog signal and holds (locks, freezes) its value at a constant level for a specified minimum period of time.

How do you create a sample and hold circuit?

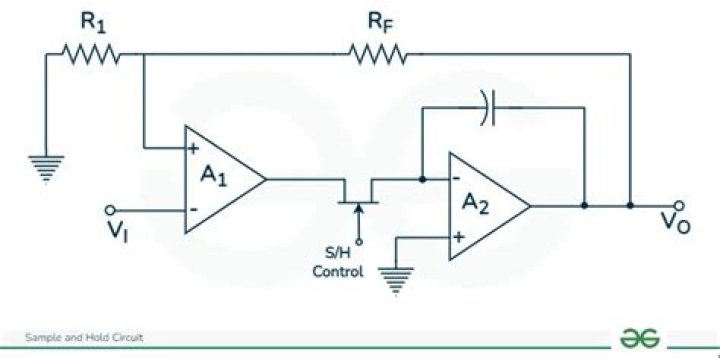

Circuit Designing of Sample and Hold Circuit using Op-Amp. In electronics, a sample and hold (S&H) circuit is an analog device that is used to take the voltage of a constantly changing analog signal and locks its value at a stable level for a particular least period of time.

Related Question Answers

What are the two types of sampling switches?

Conventional Choices for the Sampling Switch Include JFET, MOSFET and Diode Bridge FET Parasitic Capacitances Result in Large Gate Drive Originated Feedthrough to Signal Path. Diode Bridge is Better; Its Small Parasitic Capacitances Tend to Cancel. Bridge Requires DC and AC Trims and Complex Drive Circuitry.

What is the function of sampler?

A sampler is a subsystem or operation that extracts samples from a continuous signal. A theoretical ideal sampler produces samples equivalent to the instantaneous value of the continuous signal at the desired points.

How does an A D converter work?

ADCs follow a sequence when converting analog signals to digital. They first sample the signal, then quantify it to determine the resolution of the signal, and finally set binary values and send it to the system to read the digital signal. Two important aspects of the ADC are its sampling rate and resolution.

Why do we need to do sampling?

Sampling saves money by allowing researchers to gather the same answers from a sample that they would receive from the population. Non-random sampling is significantly cheaper than random sampling, because it lowers the cost associated with finding people and collecting data from them.

What are the types of ADC?

There are really five major types of ADCs in use today:

• Successive Approximation (SAR) ADC.
• Delta-sigma (ΔΣ) ADC.
• Dual Slope ADC.
• Pipelined ADC.
• Flash ADC.

Who is a sampler?

1 : one that collects, prepares, or examines samples. 2 : something containing representative specimens or selections a sampler of nineteen poets— K. E. Judd also : assortment.

What is the resolution of 12 bit data converter?

ADC has a resolution of one part in 4,096, where 212 = 4,096. Thus, a 12-bit ADC with a maximum input of 10 VDC can resolve the measurement into 10 VDC/4096 = 0.00244 VDC = 2.44 mV. Similarly, for the same 0 to 10 VDC range, a 16-bit ADC resolution is 10/216 = 10/65,536 = 0.153 mV.

What is the result of undersampling an analog signal?

The undersampling technique allows the ADC to behave like a mixer or a down converter in the receive chain. For a band-limited signal of 70 MHz with a 20-MHz signal bandwidth, if the sampling rate (Fs) is 100 MSPS, the aliased component will appear between 20 MHz to 40 MHz (30 ±10 MHz).

Which is the fastest ADC?

Flash ADC

What is hold operation?

something that is done as a temporary action in order to stop a bad situation from getting worse, or until further decisions can be made: Keeping interest rates low is a holding operation until there is a significant improvement in the economic situation.

What is ideal sampling?

Ideal Sampling is also known as Instantaneous sampling or Impulse Sampling. In this sampling technique the sampling function is a train of impulses and the principle used is known as multiplication principle. Here, Figure (a), represent message signal or input signal or signal to be sampled.

Why open loop op amp is not suitable for linear applications?

Explanation: When operated in open loop, the output switches between positive and negative saturation levels. For this reason, open loop op-amp configurations are not used in linear applications.

What are the features of instrumentation amplifier?

Instrumentation amplifiers are precision, integrated operational amplifiers that have differential input and single-ended or differential output. Some of their key features include very high common mode rejection ratio (CMRR), high open loop gain, low DC offset, low drift, low input impedance, and low noise.

What is aperture time in sample and hold circuit?

Finite Aperture Time: The sample and hold takes a period of time to capture a sample of the sensor signal. This is called the aperture time. Since the signal will vary during this time, the sampled signal can be slightly off.

Which IC is mostly preferred for sample and hold circuit?

LF398

Which factor makes the differentiator circuit unstable?

4. which factor makes the differentiator circuit unstable? Explanation: The gain of the differentiator circuit (R_F / XC₁) increases with increase in frequency at a rate of 20dB/decade. This makes the circuit unstable.

What is meant by the drop of a sample and hold gate?

What is meant by the droop of a sample and hold gate? The voltage by which the input quantity is lowered during sampling. The rate of decay of the output voltage. The voltage by which the input quantity is lowered during sampling. The voltage difference between the output voltage and the actual voltage being sampled.

What is sampling ADC?

An ADC works by sampling the value of the input at discrete intervals in time. Provided that the input is sampled above the Nyquist rate, defined as twice the highest frequency of interest, then all frequencies in the signal can be reconstructed.

What is sampling theorem in signals and systems?

The sampling theorem specifies the minimum-sampling rate at which a continuous-time signal needs to be uniformly sampled so that the original signal can be completely recovered or reconstructed by these samples alone.

Which one is a practical sampling method?

Simple Random Sampling Method

One standard method when the sample size is smaller is to use simple random sampling. Which gives every individual in the target population an equal chance of being selected by generating a series of random numbers.

How do you provide saturation current and temperature compensation in log amp?

Explanation: The temperature dependence on the output voltage is compensated by connecting an op-amp which provide a non-inverting gain of [1+ (R₂/ R_TC)] at the output of the log-amp with saturation current compensation.

What is quantization and encoding?

Solution: (a) (b) 4.2 Quantizing/Encoding Quantizing/encoding is the process of mapping the sampled analog voltage values to discrete voltage levels, which are then represented by binary numbers (bits). This is needed because the analog sample values are real numbers that occur on a continuum.

Which of the following method is employed for ADC?

Explanation: ADC provides both serial and parallel type output according to application. 3. Which of the following method is employed for ADC? Explanation: In successive approximation method input value is constantly compared with a reference value.

What is quantization error in multimedia?

Quantization error is the difference between the analog signal and the closest available digital value at each sampling instant from the A/D converter. Quantization error also introduces noise, called quantization noise, to the sample signal.

What is DAC in digital electronics?

In electronics, a digital-to-analog converter (DAC, D/A, D2A, or D-to-A) is a system that converts a digital signal into an analog signal. An analog-to-digital converter (ADC) performs the reverse function.

What is a square wave generator?

What is a Square Wave Generator? The square wave generator is defined as an oscillator that gives the output without any input, without any input in the sense we should give input within zero seconds that means it must be an impulse input. This generator is used in digital signal processing and electronic applications.

How does sample and hold work?

The function of a sample and hold circuit is partially revealed by the name. Patch a dynamic voltage source into its signal input and then patch a gate or trigger source into its gate input. Now each time you send a trigger the current voltage amount will be read, also known as sampled, and then held, or stored.

What is the difference between natural and flat top sampling?

The difference between natural sampling and flat top sampling is that: In natural sampling the analog input is multiplied by a train of uniformly spaced, rectangular pulses. While in flat top sampling the top of the samples are flat, this means they have a constant amplitude.

What do you mean by Aperture effect?

In fact, the high frequency roll-off of H(f) acts like a low-pass filter and thus attenuates the upper portion of message signal spectrum. These high frequencies of x(t) are affected. This type of effect is known as aperture effect. Now, as the duration 'τ' of the pulse increases, the aperture effect is more prominent.

Which of the following is a combination of inverting and non inverting amplifier?

Which of the following is a combination of inverting and non-inverting amplifier? Explanation: In differential amplifier with one op-amp both the inputs are connected to separate voltage source. So, if any one of the source is reduced to zero, differential amplifier acts as an inverting or non-inverting amplifier. 3.

What is the need for level shifter in operational amplifier?

Level shifter or translator is usually connected in a typical Op-Amp so as to shift the D.C. Level at the output of intermediate stage which is grounded onward to zero. Intermediate stage is basically a differential amplifier which is driven by the previous state output.

What do you understand by the term sampling?

Sampling is a process used in statistical analysis in which a predetermined number of observations are taken from a larger population. The methodology used to sample from a larger population depends on the type of analysis being performed, but it may include simple random sampling or systematic sampling.

When a step input is given to an op amp integrator The output will be?

From the diagram, it can be seen that while the input remains at zero, so does the output. However when a step input voltage is applied to the input, the output rises. When the step input returns to zero, the output remains at the voltage it last attained.

Which function makes a stable waveform displayed on the DSO screen?

An oscilloscope trigger synchronizes the oscilloscope's timebase to the input signal, producing a stable display. In analog oscilloscopes, the trigger initiates the sweep generator so that the horizontal sweep is synchronous with the vertical signal.

Why a resistor is shunted across the feedback capacitor in the practical integrator?

Why a resistor is shunted across the feedback capacitor in the practical integrator? Explanation: The input current charging the feedback capacitor produces error voltage at the output of the integrator. Therefore, to reduce error voltages a resistor (R_F) is connected across the feedback capacitor.
