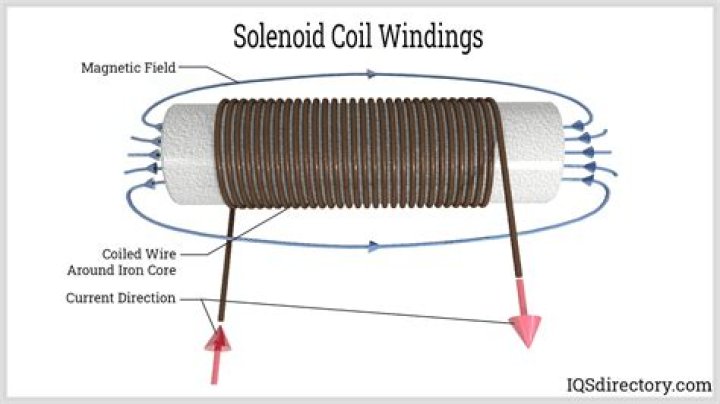

What is the effect of placing an iron core in a solenoid?

By placing a core inside of a coil the strength of the magnetic field can be increased. By putting a ferrous (iron) core inside a solenoid, the field lines are concentrated. This has the effect of strengthening the field. Inside the core, the field lines are much closer together → stronger field.

Keeping this in view, why soft iron core is used in solenoid?

By placing an iron core inside the solenoid the strength of the magnetic field increases. It has been found that if a soft iron rod called core is placed inside a solenoid, then the strength of the magnetic field becomes very large because the ironore is magnetized by induction.

Similarly, what is made by inserting an iron core into a solenoid? An electromagnet is made by inserting a soft iron core into a solenoid. The solenoid has 1800 turns, radius 2.0 cm, and length 15 cm. When 2.0 A of current flows through the solenoid, the magnetic field inside the iron core has magnitude 0.42 T.

In this manner, what is the effect on self inductance of a solenoid if a core of soft iron is placed in it?

Video Explanation. A core of soft iron is placed in a solenoid will enhance the self-induction as the magnetic flux linkage between the coils is improved due to high magnetic permeability of soft iron.

What happens when you put a magnet in a solenoid?

Moving the bar magnet into the solenoid induces an e.m.f. in the solenoid (according to Faraday's law), and because the circuit is closed, a current flows and a magnetic field is induced.

Related Question Answers

What is the best core material for an electromagnet?

Many materials can work as electromagnet cores, but some common ones are iron, amorphous steel, ferrous ceramics (ceramic compounds that are made with iron oxide), silicon steel and iron-based amorphous tape. In principle, any material with a high relative permeability can be used as an electromagnet core.

What name is given to the combination of a solenoid and a soft iron core?

electromagnet

Why does a soft iron core strengthen an electromagnet?

The magnetic particles in a soft iron nail will line up with the magnetic field when the current is switched on. When we switch on the current, the coil becomes an electromagnet. But also, the soft iron core becomes a magnet. It will add to the strength of the electromagnet.

Is soft iron a permanent magnet?

As the soft Iron cannot retain the electro magnetism after electric flow is stopped in the coil wound around the soft iron soft iron not used for making a permanent magnet. so the permanent magnets are made by the magnetic substances which can retain magnetism and have more retentivity like steel.

Which has more retentivity soft iron or steel?

Hence soft iron is said to have high susceptibility but low retentivity. Core in the transformer is made up of soft iron material. Steel is slow to be magnetized but retains the acquired magnetism for a long time. Steel is said to have low susceptibility but high retentivity.

What is soft iron used for?

Soft iron. "Soft" (annealed) iron is used in magnetic assemblies, direct current (DC) electromagnets and in some electric motors; and it can create a concentrated field that is as much as 50,000 times more intense than an air core.

Why is soft iron used in a DC motor?

Why is soft iron used in the armatures of DC motors? The magnetic field in the armature core needs to be able to reverse direction on every rotation. Soft iron concentrates the magnetic field but does not remain magnetized, allowing it to reverse.

Why is soft iron?

"Soft" magnetic materials don't retain much of a permanent magnetic field when an external magnetic field is removed. Soft magnetic materials have low coercivity. They are typically used in applications where a magnetic field must be turned ON and OFF, such as the cores of DC electromagnets and solenoids.

What is self induced emf?

Definition: Self-induced emf is the e.m.f induced in the coil due to the change of flux produced by linking it with its own turns. This phenomenon of self-induced emf can be further understood by the following example given below: Consider a coil having N number of turns as shown in the above figure.

What does negative inductance mean?

what does negative inductance mean. The answer is very easy: It is an inductance with a negative sign - used for example to cancel some unwanted (parasitic) inductance like influences. In a similar manner you can cancel small capacitances (e.g. of a coaxial transmission line) with a negative capacitor.

What is induced emf?

Induced emf (also known as induced electromotive force, electromagnetic induction, and emf induction) can be defined as the generation of a potential difference in a coil due to the changes in the magnetic flux through it. The applications of induced emf include generators, galvanometers, and transformers.

How can inductance be reduced?

To further minimize the total inductance, the mutual inductance should be maximized. This is due to the current flowing in opposite directions, resulting in opposing magnetic fields. Mutual inductance can be increased by decreasing the distance between the traces (reducing the loop area) and by increasing the width.

What is the effect of self inductance on core?

Video Explanation. A core of soft iron is placed in a solenoid will enhance the self-induction as the magnetic flux linkage between the coils is improved due to high magnetic permeability of soft iron.

What is self inductance of a solenoid?

Video Explanation. Answer. If the current through a coil is altered then the flux through that coil also changes, and this will induce an e.m.f. in the coil itself. This effect is known self-induction and the property of the coil is the self-inductance (L) of the coil, usually abbreviated as the inductance.

How does self inductance depend on number of turns?

It is called self inductance or coefficient of self induction of the coil. (i) On N the number of turns in the solenoid: L∝N2 i.e., the self inductance increases on increasing the number of turns in the solenoid. (ii) On the radius(r) of the solenoid: L∝r2 i.e., the self inductance increases on increasing the radius.

How do you know how many turns a coil has?

By counting the number of turns as you unwound each winding(s)! By measuring the cross sectional area each coil as wound, minus the core area then dividing that by the wires (AWG) size used for that winding.

How do you increase inductance?

Winding the wire into a coil increases the number of times the magnetic flux lines link the circuit, increasing the field and thus the inductance. The more turns, the higher the inductance. The inductance also depends on the shape of the coil, separation of the turns, and many other factors.

How do you strengthen a solenoid?

You can strengthen the electromagnetic field generated by such an apparatus in a few simple ways.

1. Increase the current running through the wire coils or solenoid. The stronger the current running through the wire, the stronger the magnetic field.
2. Add an iron core to the wire coil.
3. Tighten the wire coils.

Why is iron used as a core in an electromagnet?

Why is iron used for the core of an electromagnet? - Quora. Soft iron is generally used for making electromagnets because it has high magnetic permeability, i.e it can easily gain magnetic properties when current is passed around the core and quickly lose when current is stopped.

Why does wrapping wire into a solenoid shape increase the strength of the magnetic field?

When a direct electric current is passed through it, the shape of the magnetic field is very similar to the field of a bar magnet. The field inside a solenoid is strong and uniform. The small magnetic fields caused by the current in each turn of the coil add together to make a stronger overall magnetic field.

What type of core should be used inside a solenoid to make an electromagnet?

Soft iron core should be used inside a solenoid to make it a electromagnet.

How does adding an iron bar to a solenoid affect the magnetic field?

How does adding an iron bar to a solenoid affect the magnetic field of the electromagnet? It increases the magnetic field's strength.

What is the strength of the magnetic field of a coil which is carrying current dependent on?

The strength of magnetic field produced by a current carrying solenoid is: Directly proportional to the number of turns in the solenoid. Directly proportional to the strength of current in the solenoid. Dependent on the nature of "core material" used in making the solenoid.

How does a solenoid work?

Solenoid is the generic term for a coil of wire used as an electromagnet. It also refers to any device that converts electrical energy to mechanical energy using a solenoid. The device creates a magnetic field from electric current and uses the magnetic field to create linear motion.

What is a ferrous core?

It is made of ferromagnetic metal such as iron, or ferrimagnetic compounds such as ferrites. The high permeability, relative to the surrounding air, causes the magnetic field lines to be concentrated in the core material. The magnetic field is often created by a current-carrying coil of wire around the core.

What determines which direction the iron bar moves in a solenoid?

The small magnetic field created around the conductor has a definite direction with both the “North” and “South” poles produced being determined by the direction of the electrical current flowing through the conductor.

How do you calculate the force of a solenoid?

To calculate Solenoid Coil Electromagnetic Force: F = Force, i = Current, g = Length of the gap between the solenoid and a piece of metal, a = Area n = Number of turns, Magnetic constant = 4 x PI x 10-⁷.

Why is there no magnetic field outside a solenoid?

The magnetic field lines follow the longitudinal path of the solenoid inside, so they must go in the opposite direction outside of the solenoid so that the lines can form a loop. In order for the total number of field lines to be conserved, the field outside must go to zero as the solenoid gets longer.

How do you increase the strength of a magnetic solenoid?

The strength of the magnetic field around a solenoid can be increased by: increasing the number of turns on the coil. increasing the current. placing an iron core inside the solenoid.

What is the magnetic field inside a solenoid?

A solenoid is a long coil of wire wrapped in many turns. When a current passes through it, it creates a nearly uniform magnetic field inside. The energy density of the magnetic field depends on the strength of the field, squared, and also upon the magnetic permeability of the material it fills.

Is solenoid a permanent magnet?

A solenoid is a type of electromagnet device that consists of the solenoid coil, solenoid tube assembly (with plunger in it). It is also a type of magnet, but unlike the permanent magnet, solenoid is a type of non-permanent magnet, it will gain magnetism under some certain conditions.

Why is there a negative sign in Lenz's law?

The negative sign in Faraday's law comes from the fact that the emf induced in the coil acts to oppose any change in the magnetic flux. This is summarized in Lenz's law. Lenz's law: The induced emf generates a current that sets up a magnetic field which acts to oppose the change in magnetic flux.

What happens when a current is passed through a solenoid?

A solenoid is a long coil of wire wrapped in many turns. When a current passes through it, it creates a nearly uniform magnetic field inside. Solenoids can convert electric current to mechanical action, and so are very commonly used as switches.

Is the magnetic field inside a solenoid uniform?

Magnetic Field of a Solenoid. A solenoid is a tightly wound helical coil of wire whose diameter is small compared to its length. The magnetic field generated in the centre, or core, of a current carrying solenoid is essentially uniform, and is directed along the axis of the solenoid.

What is an ideal solenoid?

We will consider an ideal solenoid, one that has the radius of its coils very small compared to its overall length and has its coils closely spaced together. A perfectly ideal solenoid would have infinite length.
