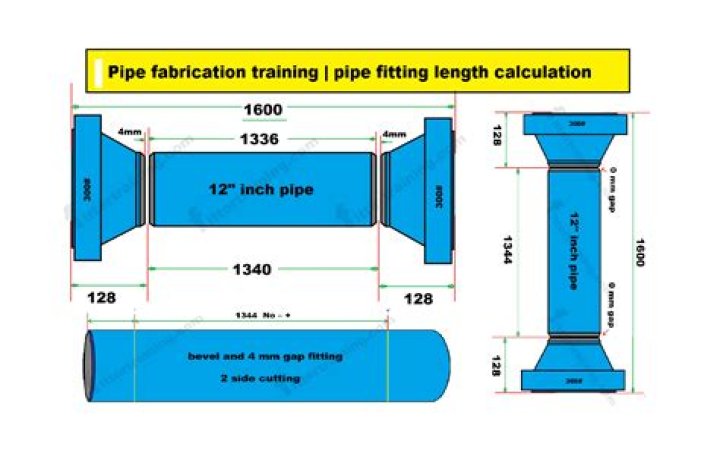

What is the length of pipe?

18 - 25 feet

Besides, how long is a double random length of pipe?

11 to 13 meters

Beside above, what is the length of a PVC pipe? 20 feet

In respect to this, how do you calculate equivalent pipe length?

The equivalent length of piping that will cause the same head loss as a particular component can be determined by multiplying the value of Leq/D for that component by the diameter of the pipe. The higher the value of Leq/D, the longer the equivalent length of pipe.

What is the standard length of steel pipe?

A completely description for steel pipe dimension includes outer diameter (OD), wall thickness (WT), pipe length (Normally 20 ft 6 meter, or 40 ft 12 meters).

Related Question Answers

Why does steel pipe come in 21 lengths?

The 21 foot length was the length that could be produced and still keep enough heat in the strip to produce a good weld. A longer length would not have produced suitable weld quality over the entire length. Shorter pipe would not have as good a yield.

What are two methods of classifying pipe thickness?

The classification of pipes are schedule and nominal diameter. Pipe is typically ordered using the Nominal Pipe Size (NPS) standard and by specifying a nominal diameter (pipe size) and schedule number (wall thickness).

What is ERW pipe?

ERW (Electric Resistance Welded) pipes are welded longitudinally, manufactured from Strip / Coil and can be manufactured upto 24” OD. ERW pipe cold formed from a ribbon of steel pulled through a series of rollers and formed into a tube which is fused through a electric charge.

What is the end of a pipe called?

A tobacco pipe, often called simply a pipe, is a device specifically made to smoke tobacco. It comprises a chamber (the bowl) for the tobacco from which a thin hollow stem (shank) emerges, ending in a mouthpiece (the bit).

What is T&C pipe?

The term “pipe end” refers to how the pipe is finished at its extremities. 20.1 for petrochemical pipes) require threaded fittings and flanges and are used for smaller size pipelines or gas lines. Threaded and coupled ends (T&C), generally used for gas distribution.

What is HDPE pipe?

HDPE pipe is a type of flexible plastic pipe used for fluid and gas transfer and is often used to replace ageing concrete or steel mains pipelines. Made from the thermoplastic HDPE (high-density polyethylene), its high level of impermeability and strong molecular bond make it suitable for high pressure pipelines.

What is pipe beveling?

Pipe beveling is the process where an angle is formed between the edge of the end of a pipe or tube and a plane perpendicular to the surface. A standard pipe bevel angle for welding is 37.5 degrees.

What is equivalent pipe diameter?

The equivalent diameter is the diameter of a circular duct or pipe that for equal flow gives the same pressure loss or resistance as an equivalent rectangular duct or pipe.

What is equivalent pipe?

Equivalent pipes refer to imaginary pipes which are used to determine the head loss and flow of discharge considering that the flow of discharge and head loss in the actual piping system is same as that of the equivalent pipe. During analysis, the two important properties of the pipe have to be assumed.

Why are pipes connected in parallel?

Pipes in parallel are pipes with different diameters and same lengths, where each pipe is connected separately to increase the discharge. Neglecting minor losses, it is obvious that the total head loss HL between the two tanks is the same as the friction losses through each pipe.

How do you calculate pressure drop in a pipe?

Pressure-loss form where the pressure loss per unit length ΔpL (SI units: Pa/m) is a function of: ρ, the density of the fluid (kg/m³); D, the hydraulic diameter of the pipe (for a pipe of circular section, this equals the internal diameter of the pipe; otherwise D ≈ 2√A/π for a pipe of cross-sectional area A) (m);

What does equivalent length mean?

Equivalent length is the length of pipe with diameter and friction factor having the same energy loss as a fitting.

What is the equivalent length of a 90 degree elbow?

For example an 8” 90 deg. elbow SDR 17.6 shows an equivalent length of 14.0 ft. This means that for every 8” 90 deg. elbow you have in your system you need to add 14.0 ft.

What is equivalent length of column?

The equivalent or effective length is defined as the distance between two adjacent points of contra flexure on the column. The equivalent length of a column is usually given in terms of the actual length and depends upon the end conditions of the column.

How do you calculate friction loss in pipe fittings?

The friction factor f can be calculated by the following empirical formula, known as the Blasius formula, valid for turbulent flow in smooth pipes with ReD < 105: = 0.316(Re ) . where K is called the Loss Coefficient of the pipe fitting under consideration.

Is pipe size ID or OD?

Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different.

What is the difference between SDR 35 and Schedule 40 pipe?

SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.

Will schedule 40 fittings fit SDR 21 pipe?

Re: Do sch 40 pvc fittings fit SDR 21 pipe? Usually SDR has a 4" i.d., the same as sch 40, but since the wall is thinner the o.d. is NOT the same. There are glue on bushings to increase the size so it will fit in standard fittings.

How much PVC pipe goes into a fitting?

There is a detent inside of each fitting that stops the pipe from going too far in. For instance, a 3/4” pipe will go into a 3/4” fitting about 3/4” of an inch. A 1-1/4” pipe will go into a 1-1/4” fitting about 1-1/4”, and so on and so forth.

What is the largest size of PVC pipe?

DIMENSIONS

Schedule 40 PVC Pipe Dimensions
PIPE SIZE	O.D.	MAX. W.P. PSI
*18"	18.000	130
*20"	20.000	120
*24"	24.000	120

What does Schedule 40 mean?

Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch). This makes it ideal for industrial and chemical applications.

What are the different sizes of PVC pipe?

PVC pipes typically come in sizes ranging from half an inch to 5 inches in diameter. Pipes with a 1.5-inch diameter commonly connect to sinks, whereas 3-inch pipes commonly connect to toilets.

How much does PVC pipe cost per foot?

PVC-40 White Pipe (Sold in 20 ft. lengths Price by Foot)

Item #	Price	Size
15290	$1.34	1-1/4 inches
15263	$1.46	1-1/2 inches
15264	$1.93	2 inches
15265	$4.01	3 inches

What is standard pipe size?

The most common standard diameters are as follow: 0.5 inch (15 mm), 0.75 inch (20 mm), 1 inch (25 mm), 1.5 inch (40 mm), 2 inch (50 mm), 3 inch (80 mm), 4 inch (100 mm), 6 inch (150 mm), 8 inch (200 mm), 10 inch (250 mm), 12 inch (300 mm), 14 inch (350 mm), 16 inch (400 mm), 18 inch (450 mm), 20 inch (500 mm), 22 inch

What type of steel is schedule 40 pipe?

Material. Schedule 40 steel pipe is typically made from a low-carbon or mild steel. These steels are typically categorized by having a carbon content less than . 2 percent.

How do you calculate pipe weight per foot?

This formula can be used to determine the weight per foot for any size of pipe with any wall thickness: Wt/Ft = 10.69*(OD - Wall Thickness)*Wall Thickness.

How much does schedule 40 pipe weight per foot?

Steel Pipe Specifications Schedule 40

Nominal Size (IPS)	Diameter External (Inches)	Weight Per Foot Plain Ends (Pounds)
3-1/2"	4.000	9.109
4"	4.500	10.79
5"	5.563	14.62
6"	6.625	18.97

How much does 2 inch pipe weight per foot?

Pipe: Dimensions & Weights

Steel Pipe Dimension and Weight Chart Blue Numbers = Wall Thickness \| Red Numbers = Weight Per Foot (Lbs)
PIPE SIZE	O.D.in inches	XXH
2	2.375	0.436
2	2.375	9.029
2-1/2	2.875	0.552

What thickness is schedule 40 steel pipe?

A 4 inches (100 mm) Schedule 40 pipe has an outside diameter of 4.500 inches (114.30 mm), a wall thickness of 0.237 inches (6.02 mm), giving a bore of 4.026 inches (102.26 mm)

What is the weight of steel pipe per foot?
