When an electromagnetic waves are propagated in a waveguide *?
A waveguide confines the wave to propagate in one dimension, so that, under ideal conditions, the wave loses no power while propagating. Due to total reflection at the walls, waves are confined to the interior of a waveguide.
Likewise, how is an electromagnetic wave propagated?
The changing magnetic field, in turn, induces an electric field so that a series of electrical and magnetic oscillations combine to produce a formation that propagates as an electromagnetic wave. At the same frequency, the magnetic field oscillates perpendicular to the electric field.
Likewise, what is propagation constant in waveguide? The propagation constant of a mode in a waveguide (e.g. a fiber), often denoted with the symbol γ, determines how the amplitude and phase of that light with a given frequency varies along the propagation direction z: where A(z) is the complex amplitude of the light field at position z.
Also to know, what is the wavelength of a wave in a waveguide?
Guide wavelength. Guide wavelength is defined as the distance between two equal phase planes along the waveguide. The guide wavelength is a function of operating wavelength (or frequency) and the lower cutoff wavelength, and is always longer than the wavelength would be in free-space.
Why TEM waves Cannot propagate in waveguides?
A rectangular waveguide supports TM and TE modes but not TEM waves because we cannot define a unique voltage since there is only one conductor in a rectangular waveguide. The shape of a rectangular waveguide is as shown below. A material with permittivity e and permeability m fills the inside of the conductor.
Related Question Answers
Why electromagnetic wave can travel in vacuum?
As we know electromagnetic waves are created by charges in motion or by magnetic field created by charged particles. And for the flow of field other charge carriers are required but vacuum does not contain any charged particles and how these waves are being carried forward after they have been produced from a source.How fast is an electromagnetic wave?
Electromagnetic radiation is a type of energy that is commonly known as light. Generally speaking, we say that light travels in waves, and all electromagnetic radiation travels at the same speed which is about 3.0 * 108 meters per second through a vacuum.Where do electromagnetic waves come from?
Description: Electromagnetic waves are formed when an electric field comes in contact with a magnetic field. They are hence known as 'electromagnetic' waves. The electric field and magnetic field of an electromagnetic wave are perpendicular (at right angles) to each other.Why Light is an electromagnetic wave?
As light is produced by the acceleration of charged particles & from law of electromagnetism that states that: an accelerated charge produce electromagnetic wave,light is an electromagnetic wave. Actually light is the transfer of energy from one part of electromagnetic field to other.How do electromagnetic waves play an important role in your life?

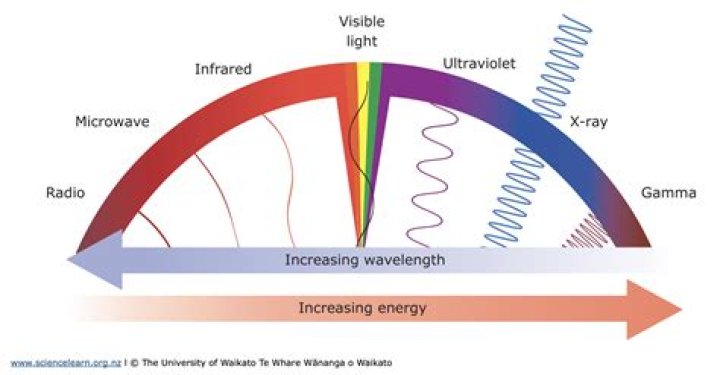

Electromagnetic waves are used to transmit long/short/FM wavelength radio waves, and TV/telephone/wireless signals or energies. They are also responsible for transmitting energy in the form of microwaves, infrared radiation (IR), visible light (VIS), ultraviolet light (UV), X-rays, and gamma rays.Where is energy stored in electromagnetic waves?
The E and B fields, along with being perpendicular to each other, are perpendicular to the direction the wave travels, meaning that an electromagnetic wave is a transverse wave. The energy of the wave is stored in the electric and magnetic fields.What are the 4 main properties of electromagnetic waves?
Like other waves, electromagnetic waves have properties of speed, wavelength, and frequency.How safe are electromagnetic waves?
There is no doubt that short-term exposure to very high levels of electromagnetic fields can be harmful to health. Despite extensive research, to date there is no evidence to conclude that exposure to low level electromagnetic fields is harmful to human health.Why do we use waveguide?
A waveguide is a structure that guides waves, such as electromagnetic waves or sound, with minimal loss of energy by restricting the transmission of energy to one direction. The original and most common meaning is a hollow conductive metal pipe used to carry high frequency radio waves, particularly microwaves.What is waveguide and its types?
Definition. A hollow metallic tube of the uniform cross section for transmitting electromagnetic waves by successive reflections from the inner walls of the tube is called as a Waveguide. A waveguide is generally preferred in microwave communications. Unlike the transmission line, the waveguide has no center conductor.Why waveguides are used in high frequency?
Wave guides conduct microwave energy at lower loss than coaxial cables. Waveguides are practical only for signals of extremely high frequency, where the wavelength approaches the cross-sectional dimensions of the waveguide. Below such frequencies, waveguides are useless as electrical transmission lines.What is waveguide mode?
Waveguide mode stands for a unique distribution of transverse and longitudinal components of the electric and magnetic fields. There are two types of waveguide modes that can propagate in the waveguides: TE (Transverse Electric) and TM (Transverse Magnetic).Which condition holds good in a waveguide?
In a waveguide, always which condition holds good? Explanation: In air medium, the phase velocity is assumed to be the speed of light. For waveguides, the phase velocity is always greater than the speed of the light.What is a cutoff wavelength?
The cutoff wavelength is the minimum wavelength in which a particular fiber still acts as a single mode fiber. Above the cutoff wavelength, the fiber will only allow the LP01 mode to propagate through the fiber (fiber is a single mode fiber at this wavelength).What is the cutoff frequency of a waveguide?
The cutoff frequency of an electromagnetic waveguide is the lowest frequency for which a mode will propagate in it. In fiber optics, it is more common to consider the cutoff wavelength, the maximum wavelength that will propagate in an optical fiber or waveguide.How do you calculate wavelength?
The corresponding wavelength, called the guide wavelength, is denoted by λg =2π/β .What is the dominant mode in rectangular waveguide?
The dominant mode in a particular waveguide is the mode having the lowest cutoff frequency. For rectangular waveguide this is the TE10 mode. The TE (transverse electric) signifies that all electric fields are transverse to the direction of propagation and that no longitudinal electric field is present.What causes the attenuation present in a waveguide?
The waveguide loss is a loss of energy due to micro- and macrobending, uneven distribution of the refractive index at the core-jacket interface or the variations in diameter or interface shape. Absorption is a transfer of electromagnetic wave energy to the medium in which the wave propagates (Fig. 2).What is the significance of propagation constant?
The propagation constant of a sinusoidal electromagnetic wave is a measure of the change undergone by the amplitude and phase of the wave as it propagates in a given direction. The quantity being measured can be the voltage, the current in a circuit, or a field vector such as electric field strength or flux density.Which property of an electromagnetic wave depends on the medium in which it is Travelling?
velocityWhat is effective refractive index?
A number quantifying the phase delay per unit length in a Waveguide relative to the phase delay in vacuum.When a particular mode is excited in a waveguide?
When a particular mode is excited in a waveguide, there appears an extra electric component, in the direction of propagation. The resulting model is transverse magnetic.What is phase constant in SHM?
The quantity φ is called the phase constant. It is determined by the initial conditions of the motion. If at t = 0 the object has its maximum displacement in the positive x-direction, then φ = 0, if it has its maximum displacement in the negative x-direction, then φ = π.What is the formula for propagation constant?
Propagation Constant of a Transmission lineZ=R+iomega L Series impedance of line per unit length. Y=G+iomega C The shunt admittance of line per unit length.
