Where does horizontal cabling start where does it stop?

Horizontal Cabling. The horizontal cabling system extends from the work area's telecommunications information outlet to the telecommunications room (TR) or telecommunications enclosure (TE).

Also, what is the purpose of horizontal cabling?

Horizontal Cabling, in premise cabling, is any cabling that is used to connect a floor's wiring closet to wall plates in the work areas to provide local area network (LAN) drops for connecting users computers to the network.

Likewise, what are the 6 components of structured cabling? From this article, we can know that a structured cabling system consists of six important components. They are horizontal cabling, backbone cabling, work area, telecommunications closet, equipment room and entrance facility.

Also question is, what does backbone cabling consist of?

Backbone cabling is the inter-building and intra-building cable connections in structured cabling between entrance facilities, equipment rooms and telecommunications closets. Backbone cabling consists of the transmission media, main and intermediate cross-connects and terminations at these locations.

What are the 6 subsystems?

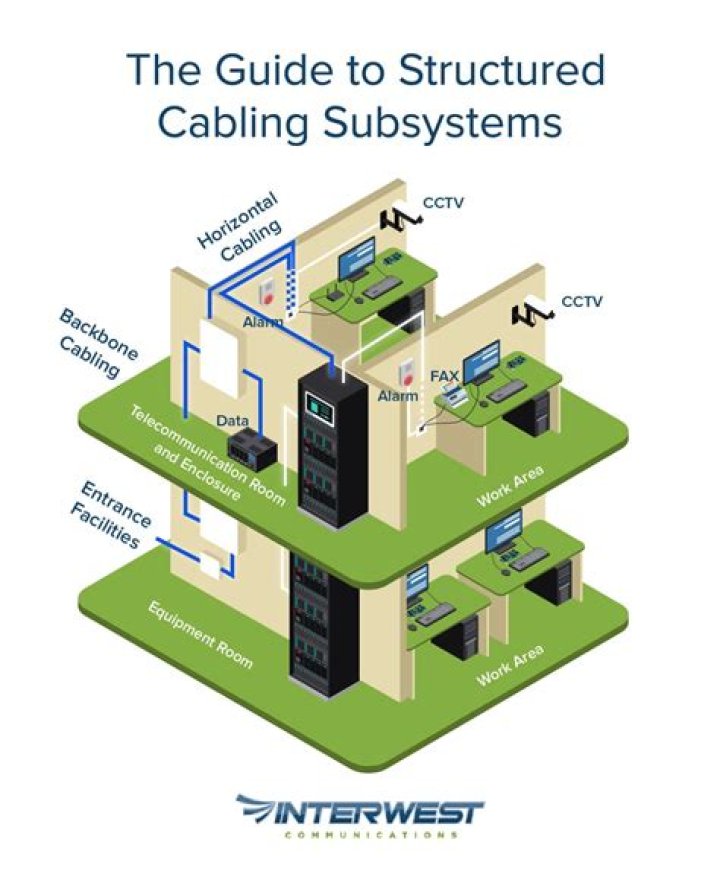

The Six Subsystems of a Structured Cabling System

• Entrance Facilities (EF)
• Equipment Room (ER)
• Backbone Cabling.
• Telecommunications Room (TR) and Telecommunications Enclosure (TE)
• Horizontal Cabling – (Cabling Subsystem 1)
• Work Area.

Related Question Answers

What is the maximum length you can run horizontal station cable?

90 meters

What is a horizontal cable run?

Horizontal Cabling is any cabling that is used to connect a floor's wiring closet to wall plates in the work areas to provide local area network (LAN) drops for connecting users' computers to the network.

Which cable types are recognized for use in the horizontal cabling system?

Horizontal cables recognized by the ANSI/TIA-568-C standard are limited to the following: Four-pair, 100 ohm, unshielded or shielded twisted-pair cabling: Category 5e, Category 6 or Category 6A (ANSI/TIA-568-C. 2)

What is the difference between a 66 block and a 110 block?

a single 66 block can handle 12 4 pair cables, or 50 pairs and mount vertically. 110 blocks come in either 100, 200, or 300 pair with rows of 50 pairs each and mount horizontally. It is tons easier to troubleshoot phones that are on 66 blocks.

What is horizontal and vertical cabling?

Horizontal and Vertical Cabling Management Usually, the horizontal network cabling is terminated in termination blocks or patch panels and then it is distributed to other parts of the work area using horizontal pathways. It is also the place in the network where the backbone cables and equipment terminate.

What are three characteristics of UTP cabling?

The following summarizes the features of UTP cable:

• Speed and throughput—10 to 1000 Mbps.
• Average cost per node—Least expensive.
• Media and connector size—Small.
• Maximum cable length—100 m (short)

What is cabling structure of LAN?

L A N = Local Area Networking & WAN = Wide Area Networking Networking forms a Structured Cabling System is built around Copper Cable & Fiber Optic Cable. There are 2 types of Copper Cable Connection i.e. ANSI & TIA / EIA 568 A & 568 B as shown below.

What does structured cabling mean?

In telecommunications, structured cabling is building or campus cabling infrastructure that consists of a number of standardized smaller elements (hence structured) called subsystems. Structured cabling components include twisted pair and optical cabling, patch panels and patch cables.

How does structured cabling work?

A structured cabling system is a complete system of cabling and associated hardware, which provides a comprehensive telecommunications infrastructure. This infrastructure serves a wide range of uses, such as to provide telephone service or transmit data through a computer network. It should not be device dependent.

What is the minimum number of cables to a work area?

Each individual work area shall be serviced with a minimum of two telecommunications outlets. One will be associated with voice and the other data. One outlet will be a 4 pair 100 ohm UTP cable rated category 3 or higher. Category 5e is recommended.

What is a fiber optic backbone?

The Internet backbone is a conglomeration of multiple, redundant networks owned by numerous companies. It is typically a fiber optic trunk line. The trunk line consists of many fiber optic cables bundled together to increase the capacity. The backbone is able to reroute traffic in case of a failure.

Which type of cable is most commonly used to create a network backbone?

With the emerge of Gigabit Ethernet and 10 Gigabit Ethernet, fiber optic cable is the most appropriate choice for backbone cabling since they provide much higher bandwidth than traditional Cat5, Cat6 or even Cat7 twisted pair copper cables.

What is structured cabling Why is it important?

Structured cabling standards help organizations install wiring in a way that prevents these messy tangles by keeping the whole wiring infrastructure organized. Structured cabling solutions enable just that, making updates easy to implement with minimal risk to the infrastructure.

How many types of networking cables are there?

To connect two or more computers or networking devices in a network, network cables are used. There are three types of network cables; coaxial, twisted-pair, and fiber-optic.

What are the three types of cables that might be used in a backbone?

When setting up backbone cabling, several types of media can be used: unshielded twisted-pair (UTP) cable, shielded twisted-pair (STP) cable, fiber optic cable, or coaxial cable. Equipment should be connected by cables of no more than 30 meters (98 feet).

What is the maximum backbone distance for a UTP data circuit from MC to HC?

The rules for backbone cabling include a maximum distance between the main crossconnect (MC) and the horizontal crossconnect (HC) of 2000 meters for 62.5/125-micron multimode fiber and 3000 meters for singlemode fiber.

What does backbone cabling consist of quizlet?

Backbone cabling consists of: the backbone cables, intermediate cross-connect (IC [building distributor(BD)]), main cross-connect (MC [campus distributor (CD)]), mechanical terminations, and patch cords or jumpers used for backbone-to-backbone cross-connection.

Is structured wiring worth it?

One of the biggest benefits of distributing structured wiring throughout the home is the burden it takes off the wireless network. Part of that is because more devices can be connected directly but can also strengthen Wi-Fi connections as well.

What are cabling standards?

TIA/EIA-568-A-1995 (Commercial Building Telecommunications Wiring Standards) Defines a standard for building cable system for commercial buildings that support data networks, voice, and video. It also defines the technical and performance criteria for cabling.

What is passive cabling?

Without an electronic circuit a cable is considered a 'passive' cable. Passive cables are liable to degrade the data they carry, due to "channel impairments" including attenuation, crosstalk and group velocity distortion.

What is ICT cabling?

In telecommunications, structured cabling is building or campus cabling infrastructure that consists of a number of standardized smaller elements (hence structured) called subsystems.

What is vertical cabling?

The backbone cabling is also called vertical cabling or wiring. It provides interconnection between telecommunication rooms, equipment rooms and entrance facilities.

What are the different types of cabling?

Here's an overview of the most common computer cable types you'll encounter when dealing with computers.

• VGA Cable. Also known as D-sub cable, analog video cable.
• DVI Cable. Connect one end to: computer monitor.
• PS/2 Cable.
• Ethernet Cable.
• 3.5mm Audio Cable.
• USB Cable.
• Computer Power Cord (Kettle Plug)

Where would you most likely find a patch panel What are they used for?

A patch panel in a local area network (LAN) is a mounted hardware assembly that contains ports used to connect and manage incoming and outgoing LAN cables. Patch panels are also referred to as patch bays, patch fields or jack fields and are also commonly used in radio and television.

What is structured wiring in a home?

The term refers to any wiring that is used to carry signal from one point to another. Much like the electrical wiring in your home carries the voltage needed to power your electronics, structured wiring provides the TV, internet, and phone signal from a centralized point to all of the rooms within your home.

Is Cat 5 cable copper?

CAT5 cables contain four pairs of copper wire supporting Fast Ethernet speeds of up to 100 Mbps. As with all other types of twisted-pair EIA/TIA cabling, CAT5 cable runs are limited to a maximum recommended run length of 100 meters (328 feet).

What is transport sub system?

Reference Model, while transport subsystems cover only a subset of a complete transport system. Transport subsystems deliver the performance of the underlying networks to the application layers, and transport subsystem entities use protocols for communication.

What is intermediate cross connect?

Main definition. Intermediate cross-connect (ICC) A cross-connect between first-level and second-level backbone cabling. This secondary cross-connect in the backbone cabling is used to mechanically terminate and administer backbone cabling between the main cross-connect and horizontal cross-connect (station cables).
