Why is it dangerous to work within the work envelope of the robot?

During many of these operations the operator, programmer, or corrective maintenance worker may temporarily be within the robot's working envelope where unintended operations could result in injuries. A robot's arm functioned erratically during a programming sequence and struck the operator.

Just so, what is the work envelope of a robot?

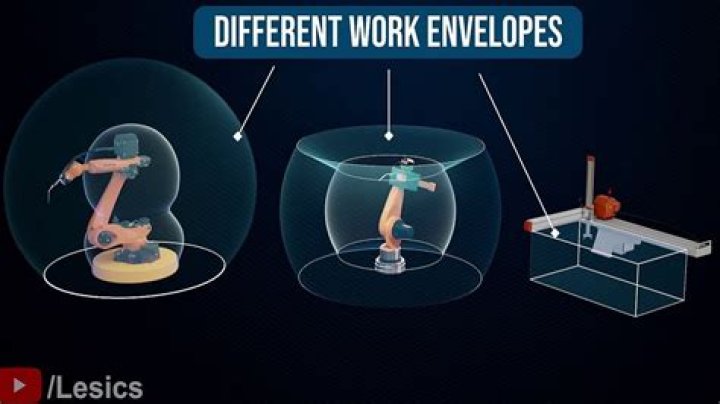

A robot's work envelope is its range of movement. It is the shape created when a manipulator reaches forward, backward, up and down. These distances are determined by the length of a robot's arm and the design of its axes. Each axis contributes its own range of motion.

Beside above, how does Robotics affect the workforce? That study's national level results for the general population suggest an adverse impact on employment and wages: an additional robot per thousand workers reduces the employment-to-population ratio by about 0.18 to 0.34 percentage points and wages by 0.25 to 0.50 percent.

Also, what safety mechanisms are in place for robots today?

Safety Options for Robotic Systems

• Fencing, Arc Glare Shields and Dividers. These are the most common safety option.
• Light Curtains and Area Scanners. Fencing tends to have three sides, with one area open for loading parts.
• Emergency Stop (E-Stop) Emergency stop, or e-stop, is a function that is used in case of emergency.

Why should you be concerned about the work envelope shape when installing a robot for a particular application?

It is the most versatile configuration and provides a larger work envelope than the other the other work configurations. However, it requires a very sophisticated controller, and programming is more complex.

Related Question Answers

What are 5 types of robots?

Generally, there are five types of robots:

• Pre-Programmed Robots. Pre-programmed robots operate in a controlled environment where they do simple, monotonous tasks.
• Humanoid Robots. Humanoid robots are robots that look like and/or mimic human behavior.
• Autonomous Robots.
• Teleoperated Robots.
• Augmenting Robots.

What is robot accuracy?

“Accuracy is the ability of a robot to move its end effector to a desired position and orientation that has never been attained before.”

What is robot configuration?

1. The various joints provide the robot with capability to move its arm within a spherical space, and hence it is also called as “ Spherical Coordinate Robot.” • It has one linear and two rotary motions.

What are the 5 main components of a robot?

Basic Components of a Robot

The components of a robot are the body/frame, control system, manipulators, and drivetrain.

What are the four basic robot configuration available commercially?

In terms of robotic movement capabilities, there are several common robotic configurations: vertically articulated, cartesian, SCARA, cylindrical, polar and delta.

• Vertically Articulated.
• Cartesian.
• SCARA (Selective Compliance Assembly Robot Arm)
• Cylindrical.
• Polar.

What is the work volume of a robot manipulator?

The work volume, or work envelope, is the three-dimensional space in which the robot can manipulate the end of its wrist (See Figure 6.3). Work volume is determined by the number and types of joints in the manipulator, the ranges of the various joints, and the physical size of the links.

What are the main ways of classifying robots?

There are six main types of industrial robots: cartesian, SCARA, cylindrical, delta, polar and vertically articulated. However, there are several additional types of robot configurations. Each of these types offers a different joint configuration. The joints in the arm are referred to as axes.

How many degrees of freedom or flexible joints does a medical robot have?

6-7 degrees

What are the three R's of robotics?

What are the three R's of robots? What are the three conditions that stop a robot? A program/driven action is finished, an alarm condition, mechanical failure. The cautionary zone is the area where one is close to the robot, but still outside the work envelope or reach of the system.

What is one of the main benefits of having the teach pendant?

One of the advantages of teach pendant programming is that an operator is not required to learn any special programming language. Hence, teach pendants can be used as an effective tool in educational robotics as well. These devices are generally proprietary and work for a specific robot.

Are robots safe?

Robots can be dangerous to operate – especially when safety protocols aren't followed. While standards for operation are important, safety standards have a far larger impact than safe operation of industrial robots.

What are three topics related to robots found in the OSHA Technical Manual?

Installation

• Installation specifications;
• Physical facilities;
• Electrical facilities;
• Action of peripheral equipment integrated with the robot;
• Identification requirements;
• Control and emergency stop requirements; and.
• Special robot operating procedures or conditions.

What are the axes of a robot named?

Axis 1 - Rotates robot (at the base of the robot) Axis 2 - Forward / back extension of robot's lower arm. Axis 3 - Raises / lowers robot's upper arm. Axis 4 - Rotates robot's upper arm (wrist roll)

Which of the following terms refers to the left right movement of a robot arm?

5) A right and left movement of the robotic arm is called: Yaw.

How are agricultural robots taught to perform tasks?

Most agricultural robots are multifunctional They can perform many tasks, such as planting, picking, milking animals, etc. Agricultural robots are taught by sensors They use these sensors by marking spots that need to be planted and memorizing them.

Can robotics replace human employment?

Yes, robots will replace humans for many jobs, just as innovative farming equipment replaced humans and horses during the industrial revolution. Factory floors deploy robots that are increasingly driven by machine learning algorithms such that they can adjust to people working alongside them.

What jobs are technology taking over?

Man versus machine: 9 human jobs that have been taken over by robots

• Bowling alley pinsetter.
• Film projectionist.
• Knocker-upper.
• Bridge toll collector.
• Check-out cashier.
• Railway station ticket seller.
• Factory worker.

What are disadvantages of robots?

The Disadvantages of Robots

• They Lead Humans to Lose Their Jobs.
• They Need Constant Power.
• They're Restricted to their Programming.
• The Perform Relatively Few Tasks.
• They Have No Emotions.
• They Impacts Human Interaction.
• They Require Expertise to Set Them Up.
• They're Expensive to Install and Run.

Will robots increase or decrease employment?

Including this spillover, one robot per thousand workers has slightly less of an impact on the population as a whole, leading to an overall 0.2 percentage point reduction in the employment-to-population ratio, and reducing wages by 0.42%. Thus, adding one robot reduces employment nationwide by 3.3 workers.

Are robots taking over jobs?

Robots could replace as many as 2 million more workers in manufacturing alone by 2025, according to a recent paper by economists at MIT and Boston University. Even before the pandemic, the global consulting company estimated that automation could displace 132,000 Black workers in the U.S. by 2030.

Do robots increase productivity?

Robots improve productivity when they are applied to tasks that they perform more efficiently and to a higher and more consistent level of quality than humans. A more recent study found that investment in robots contributed 10% of growth in GDP per capita in OECD countries from 1993 to 2016.

What is the impact of robots?

Robots increase productivity and enable an organization to become or remain competitive through benefits such as faster product development and delivery. It also enables organizations to 'reshore' or bring back part of their supply chain that they have previously outsourced to cheap-labor countries.

How will robots reduce human employment?

It was predicted that by 2030, more than 1.5 million jobs would have been lost to robots in the United States. In China, that number was expected to exceed 11 million. Across EU member states, almost 2 million people would lose out on employment because of automation, the report said.

What are the advantages and disadvantages of robots?

To address both sides of the discussion, we have put together a few brief advantages and disadvantages of using robotic automation.

• ADVANTAGES.
• Cost Effectiveness.
• Improved Quality Assurance.
• Increased Productivity.
• Work In Hazardous Environments.
• DISADVANTAGES.
• Potential Job Losses.
• Initial Investment Costs.

Which programming method allows a robot to remain in operation while a new program is written and debugged?

Which programming method allows a robot to remain in operation while a new program is written and debugged? In teach pendant programming, an operator adjusts end stops, switches, and hoses to set up the motion sequence. Off-line programming is performed away from the robot, using a computer.

What is the technical name for the robot's hand?

end-effector

What do u mean by a robot manipulator?

A robot manipulator is an electronically controlled mechanism, consisting of multiple segments, that performs tasks by interacting with its environment. They are also commonly referred to as robotic arms.

Which type of robots will NASA use to study the outer space and planets in our solar system?

The Mars rovers Spirit and Opportunity are robots. Other robotic spacecraft fly by or orbit other worlds. These robots study planets from space. The Cassini spacecraft is this type of robot.

How many degrees of freedom or flexible joints does it have?

It's used in the military for people who serve who can't run fast enough to get supplies. WildCat's work envelope is the metal that encases it as well as foam pads for it to land on when it falls. It has 8 degrees of freedom and 28 flexible joints. 24 of them are located in its back to gain speed.

Where are robots used?

They are also employed for jobs which are too dirty, dangerous or dull to be suitable for humans. Robots are widely used in manufacturing, assembly and packing, transport, earth and space exploration, surgery, weaponry, laboratory research, and mass production of consumer and industrial goods.

What manufacturer gets the credit for the first successful industrial application of robots?

Unimation manufactured UNIMATE in 1962, which was the first robot to be implemented by a major manufacturer. General Motors began using it in their New Jersey plant that same year.

Which of the following characteristics of a stand alone robot limits its capacities?

A robot's work envelope is defined as: The span of the robot's working range. Which of the following characteristics of a stand-alone robot limits its capacities? The robot is in a fixed position and can therefore only move a tool within a limited environment.

What is meant by payload capacity of robot?

Robot Payload

Payload is the weight the robot can lift. Payload includes the weight of the End of Arm Tooling (EOAT) and the weight of the product being picked.
